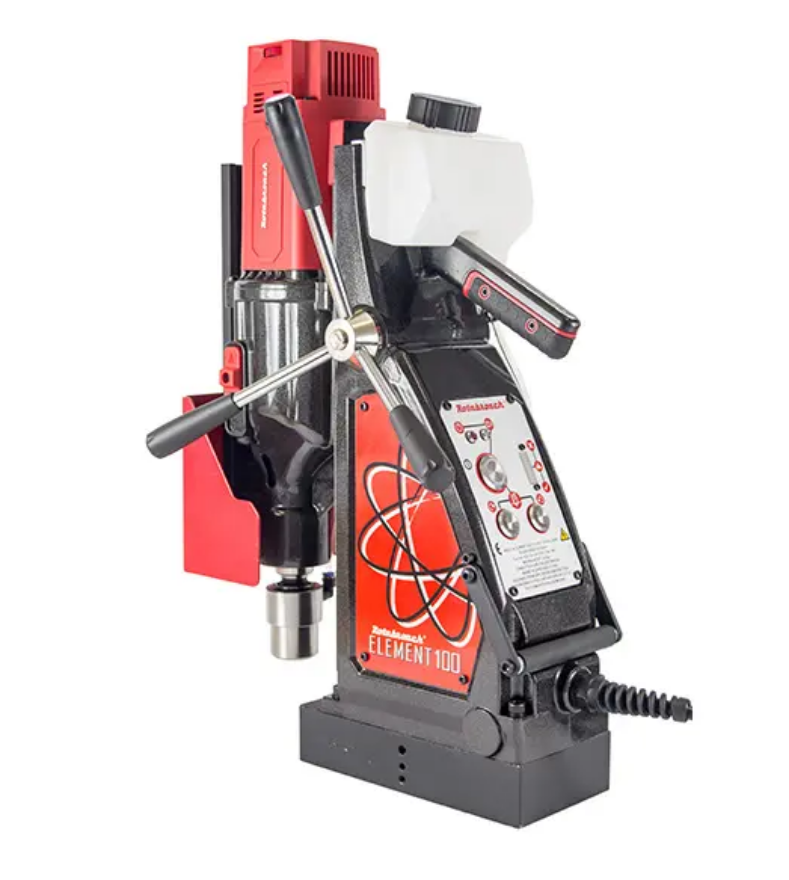

Rotabroach Element 100 Magnetic Drill

Brand: Rotabroach
Style: Rotabroach
SKU: 37258
Qualifies for Free Shipping
Rotabroach Element 100 Magnetic Drill. Cap: 100x100mm
$ 3,699 .00
$ 4,253.85 Incl GST
Rotabroach Element 100 Mag Drill

Rotabroach Element 100 Magnetic Drill

Now only:
$ 3,699 .00
$ 4,253.85 Incl GST
Product Overview
Product Videos
Learning Center
Product Overview

Rotabroach Element 100 Magnetic Drill. Cap: 100x100mm

The Rotabroach Element 100 is a powerful magnetic drill with a 2000w motor and a four-speed mechanical gearbox. As the largest machine in the Rotabroach line-up, it is a robust solution for heavy-duty drilling. The powerful 2000W motor features a two-speed gearbox, enabling the drill to achieve a 100mm diameter and 100mm depth drilling capacity, which is the largest in the Element range. The machine incorporates Rotabroach’s innovative CutSmart technology, a dual motor protection system, and an internal cable design. The Element 100 can countersink up to 40mm and features a 16mm drill chuck for twist drills. It is available with either a swivel or non-swivel base and offers forward/reverse functionality for tapping. This versatility makes it the ultimate solution for larger-size drilling, expanding the renowned Element range to bigger projects. Rotabroach's CutSmart technology is designed to maintain safety standards by alerting the user if too much force is applied to the drilled material. This allows quick, safe, and effective responses, prioritising customer safety.

Key Features:

- Rotabroach’s largest machine size (733mm)

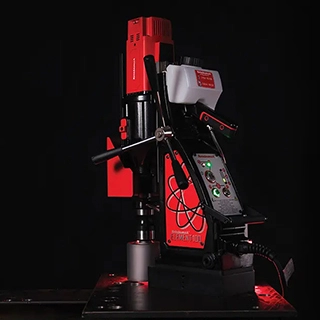

- Suitable for drilling up to 100mm diameter by 100mm depth

- Forward and reverse functionality for tapping

- Available as either a swivel base or a non-swivel option

- Dual motor protection system to prolong the machine’s life and prevent unwanted wear

- 16mm drill chuck for twist drills

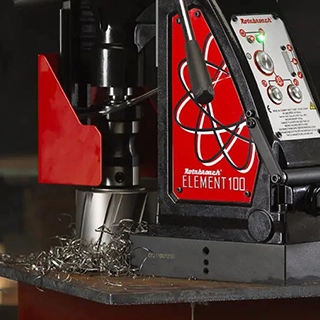

- Powerful 2000w motor with a two-speed mechanical gearbox

- Ability to countersink up to 40mm

- CutSmart Technology – designed to protect your motor and cutter, prolonging tool life

- Quick-release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility

- Internal cabling removed the risk of damage and downtime for your magdrill​

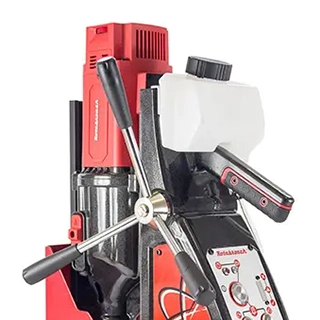

- Element 100 is supplied with internal coolant system, 16mm chuck, arbor assembly, 6mm hexagonal spanner, safety glasses, arbor shank, drift, safety strap, 3mm hexagonal spanner, stationary rings, pilot pin


Products specifications
Cutter Capacity100mm
Depth of Cut100mm
Twist Drill Capacity32mm
Drill Chuck Capacity16mm
Morse TaperMT3
No Load Speed45-700RPM
Motor Specification2000W
Magnet Adhesion20000N
Dimensions (LxHxW)370x733x230mm
Magnet Size228x114mm
