Rotabroach Element 50 Pivot Magnet Magnetic Drill

Brand: Rotabroach
Style: Rotabroach
SKU: 37255
Qualifies for Free Shipping
Rotabroach Element 50 Pivot Magnet Magnetic Drill. Cap: 50x50mm
$ 4,499 .00
$ 5,173.85 Incl GST
Rotabroach Element 50 Pivot Magnet Magnetic Drill

Rotabroach Element 50 Pivot Magnet Magnetic Drill

Now only:
$ 4,499 .00
$ 5,173.85 Incl GST
Product Overview
Specification
Product Videos
FAQ
Learning Center
Product Overview

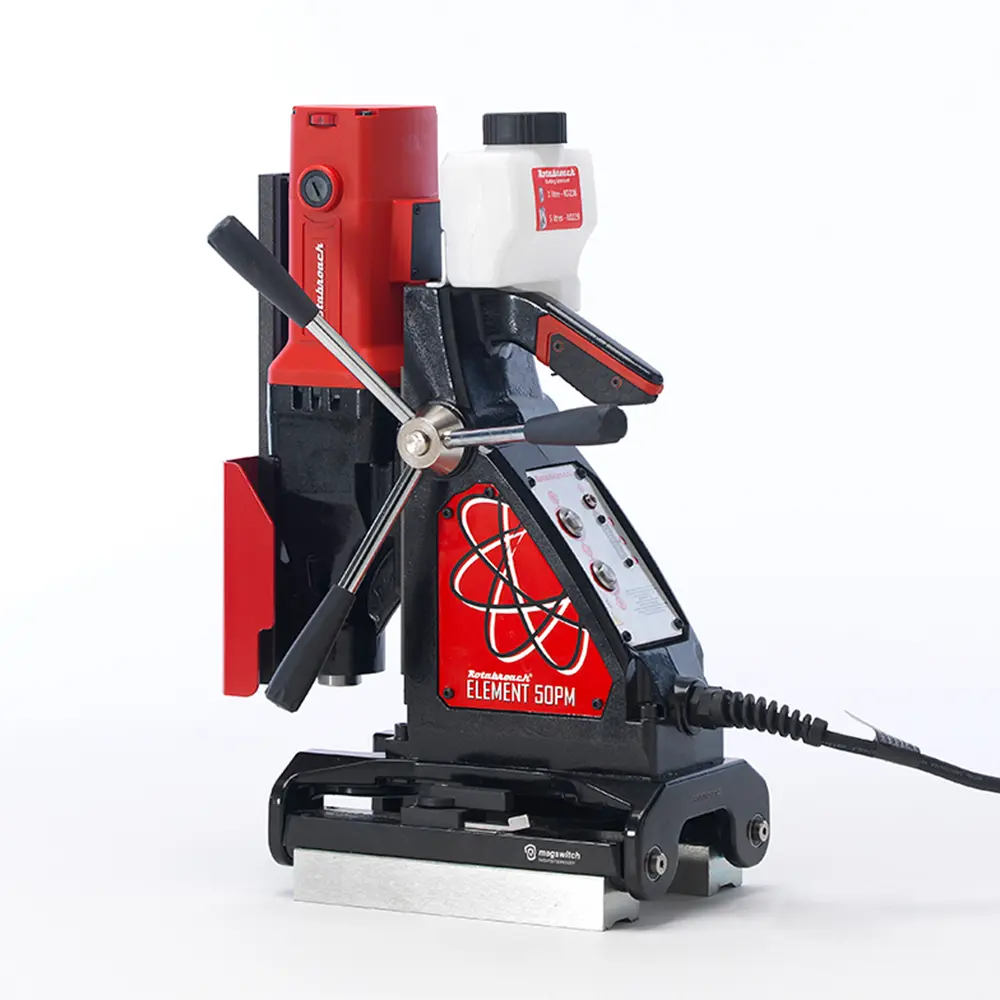

Rotabroach Element 50 Pivot Magnet Magnetic Drill

The Element 50 Pivot Magnet is a versatile and powerful magnetic drill with a 1500w motor and a two-speed mechanical gearbox, designed for optimal performance on both flat and curved surfaces. Its unique design allows for effective drilling on curved, uneven, and flat surfaces, even as thin as 3mm, making it an indispensable tool for pipework contractors, shipbuilders, and power generation sites. This drill excels in environments that require increased safety and versatility. Equipped with the proprietary CutSmart technology and overload protection, it provides superior tool and machine life. Its double pivoting permanent magnet technology, requiring no electrical power, and capabilities for twist drilling, threading, and countersinking, offer increased utility. The Element 50 Pivot Magnet also features internal cabling for reduced risk of damage, a mounted coolant bottle, a steel sliding guard, and a switchable handle for optimized operation.

Key Features:

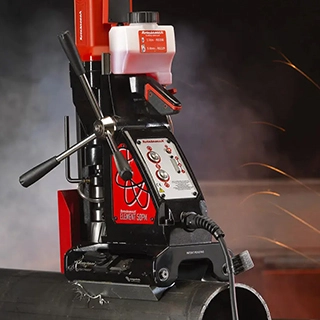

- Powerful 1500w motor with a two-speed mechanical gearbox.

- Twist drill, threading, and countersinking capabilities.

- Suitable for drilling up to 40mm diameter by 50mm depth.

- CutSmart Technology to protect your motor and cutter, prolonging tool life.

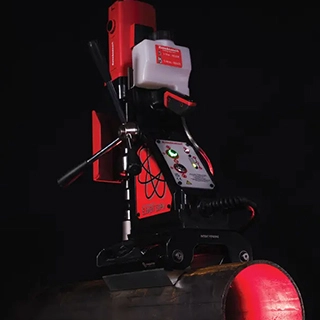

- Double pivoting magnet base for versatile use on flat and curved surfaces.

- Internal cabling reduces the risk of damage and downtime.

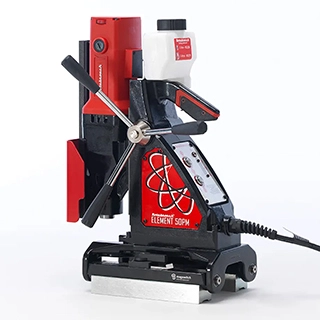

- Mounted coolant bottle, steel sliding guard, and switchable handle for optimized operation.

- Can also be used for standard flat surface drilling.

- Dual motor protection to minimize wear and downtime.

- Cutsmartā„¢ Technology, Magnetic Detection, and Secondary Motor Protection for enhanced safety

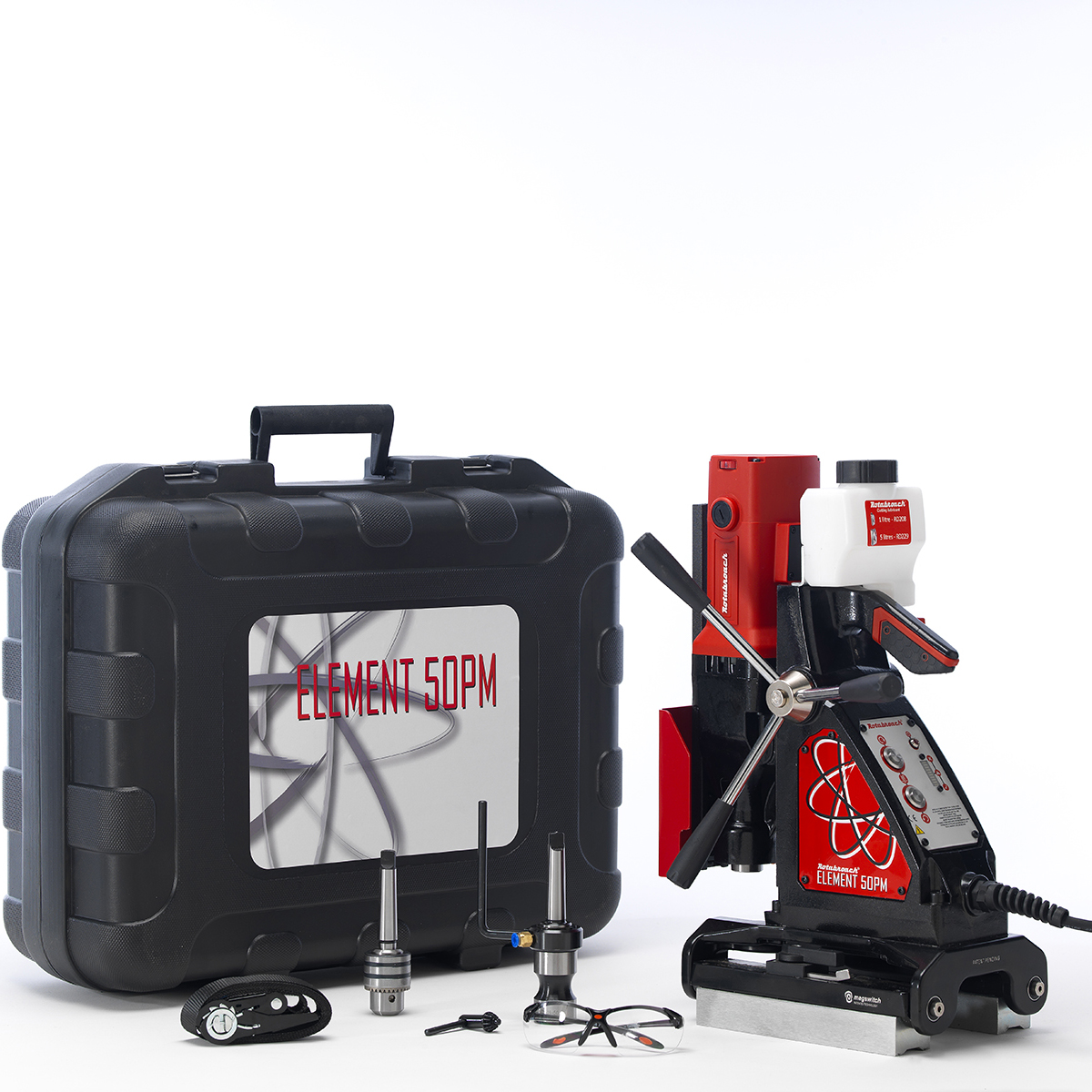

- The element 50 pivot magnet is supplied with a carry case, internal coolant system, safety strap, stationary ring, 3mm hexagon key, 6mm hexagon key, arbor shank, arbor assembly, 13mm chuck, drill chuck adaptor, drill chuck and key, drift and safety glasses

Downloads

Products specifications
Cutter Capacity50mm
Depth of Cut50mm
Twist Drill Capacity20mm
Drill Chuck Capacity13mm
Morse TaperMT2
Countersink30mm
TappingM20
No Load Speed100-500RPM
Motor Specification1500W
Magnet Adhesion8430N
Dimensions (LxHxW)317x640x190mm
Magnet Size277x190mm
Weight18kg
Motor110/230V
Stroke150mm
