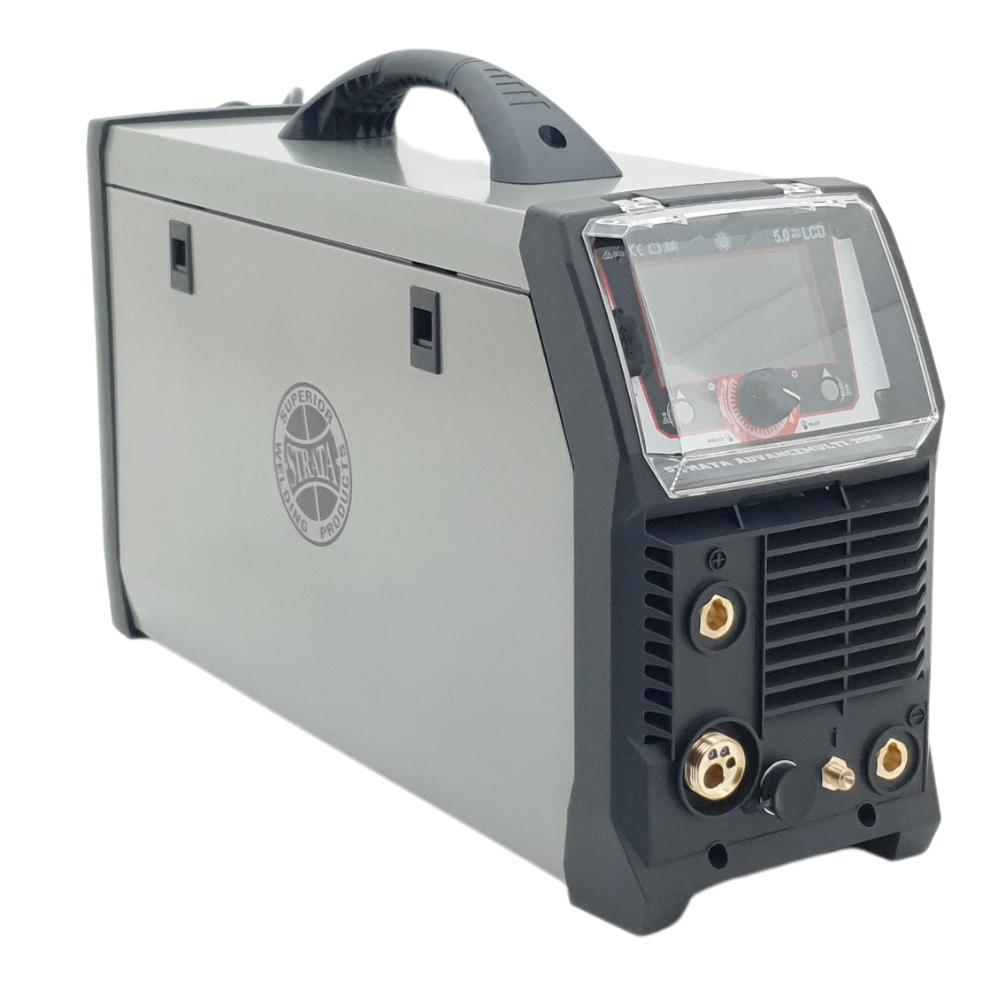

Strata AdvanceMulti205P ACDC TIG/MMA/Pulse MIG Multi-Process Welder

Free Shipping
Strata /
SKU: 34682

The Strata AdvanceMulti205P 4-in-1 Multipurpose Welder includes: 200A ACDC TIG, MMA (Arc), MIG & Mig-Pulse functions. The most versatile single phase welder in the range. Perfect for the workshop, or on-site maintenance. AdvanceMulti205P, the solution to any welding task that comes your way!

Overview

Product Overview

Strata AdvanceMulti205P ACDC TIG/MMA/Pulse MIG Multi-
Process Welder

Key Features

  • One machine for every job with Advanced Multi Process Technology - AC/DC TIG, MMA, MIG, Pulse MIG functions
  • 5" Full Colour IPS LCD Display for clear and intuitive operation of machine controls and settings
  • Active PFC Technology allows for increased duty cycle and reduced power consumption
  • Synergic Smart TIG Operation Mode provides easy setting of TIG control parameters according to the welding job
  • Advanced TIG Functions Mix AC/DC Waveforms, Advanced Waveform Control, Advanced Spot Welding
  • Lift TIG and HF Start Modes gives versatility for welding around sensitive electronic equipment
  • 2T/4T & Multilevel Trigger Control Modes
  • Electronic HF Tig Arc Ignition System for low EMF interference
  • Perfect MIG welding results on aluminium, stainless steel and thin materials with Pulse MIG Function
  • Smart Synergic MIG Function for easy control of machine settings according to welding job
  • Manual MIG function for increased control for every operator preference
  • Remote Control Spool Gun Connection Effective results welding with soft wires such as Aluminium
  • Suitable for MIG brazing with bronze wires.
  • Advanced MMA Features Pulse, AC or DC, Adjustable hot start and arc force controls
  • Multi Voltage Input for operating with wide range of input voltage, can even be used with long extension lead.
  • Resistant to damage, moisture and corrosion with industrial IP23 casing with front panel protection
  • Switchable Smart Cooling Fan Control
  • Externally upgradeable software via USB Connection

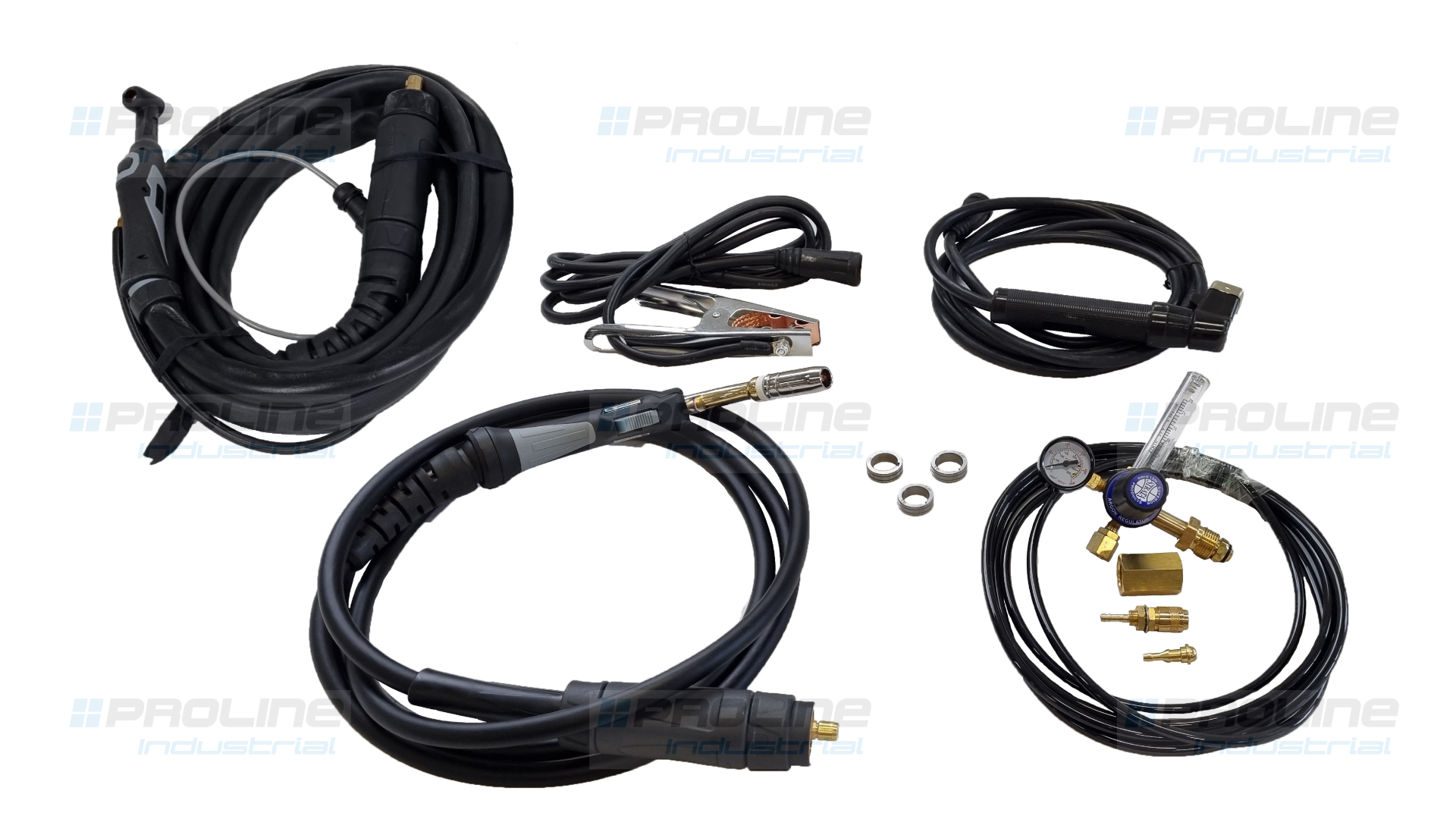

  • Accessories Include: Strata Professional PRO26 25ft TIG torch with thumbwheel remote control, Strata Professional MT250-40ER MIG Torch, 4m MMA lead with heavy duty twist lock electrode holder, 3m Earth Lead with heavy duty earth clamp, Strata 2 Stage Flowmeter Argon Gas Regulator, Argon Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp x2, MIG Wire Drive Roller 0.6/0.8mm 'v' groove, MIG Wire Drive Roller 0.9/1.0mm 'v' groove , MIG Wire Drive Roller 0.8/0.9mm 'knurled' groove
Your Questions Answered

FAQ's

What welding processes does the Strata AdvanceMulti205P support?

What advanced TIG functions are included?

How durable is it for workshop or site use?

Can it weld aluminium and other tricky materials?

What makes the MIG function stand out?

Can the software be updated?
