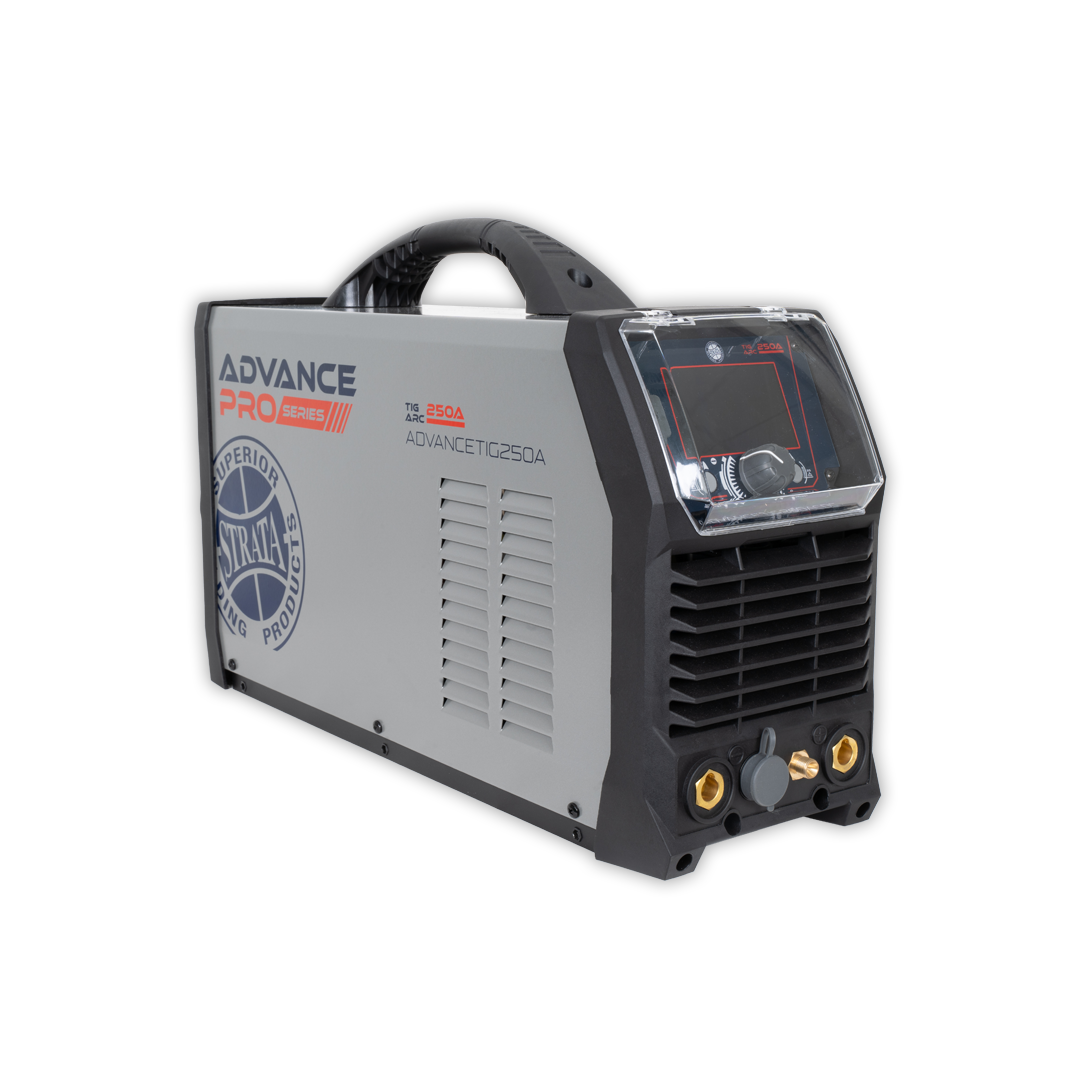

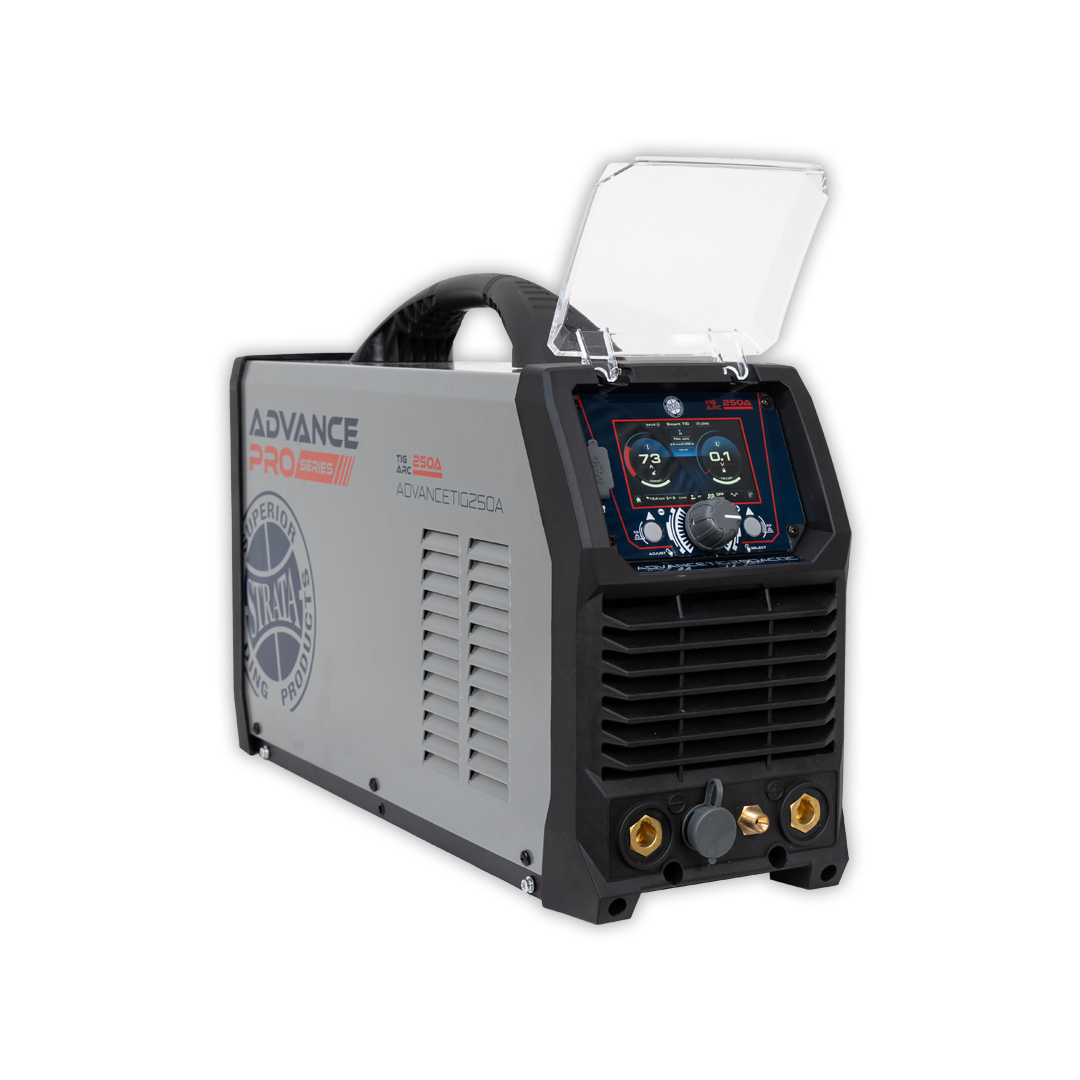

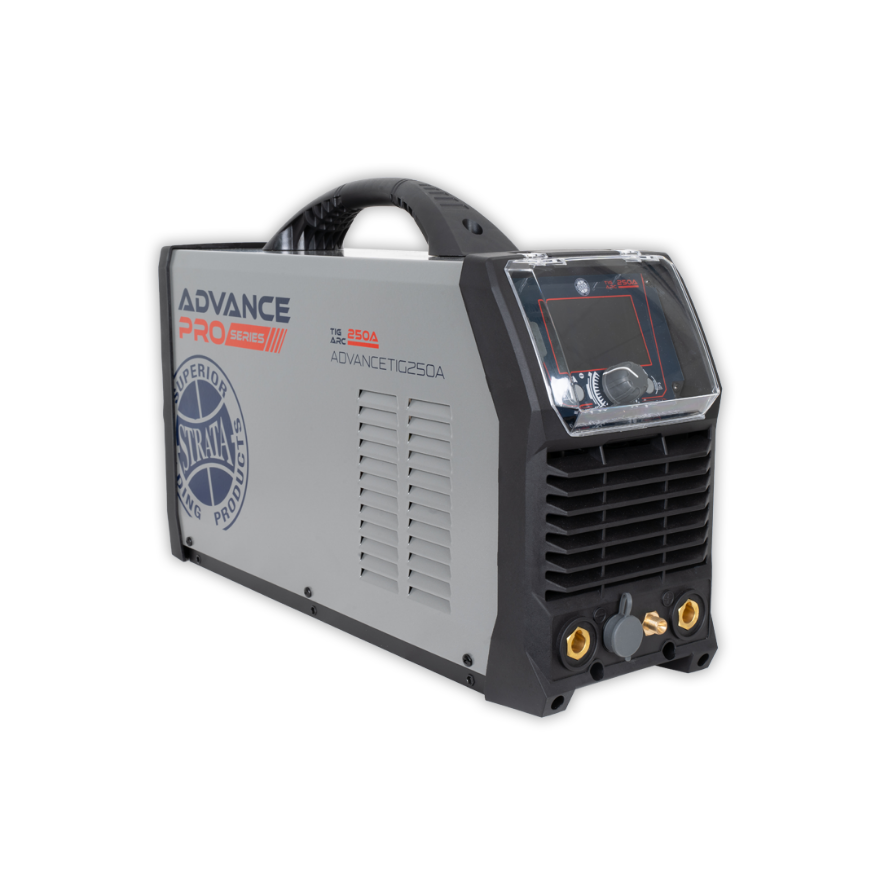

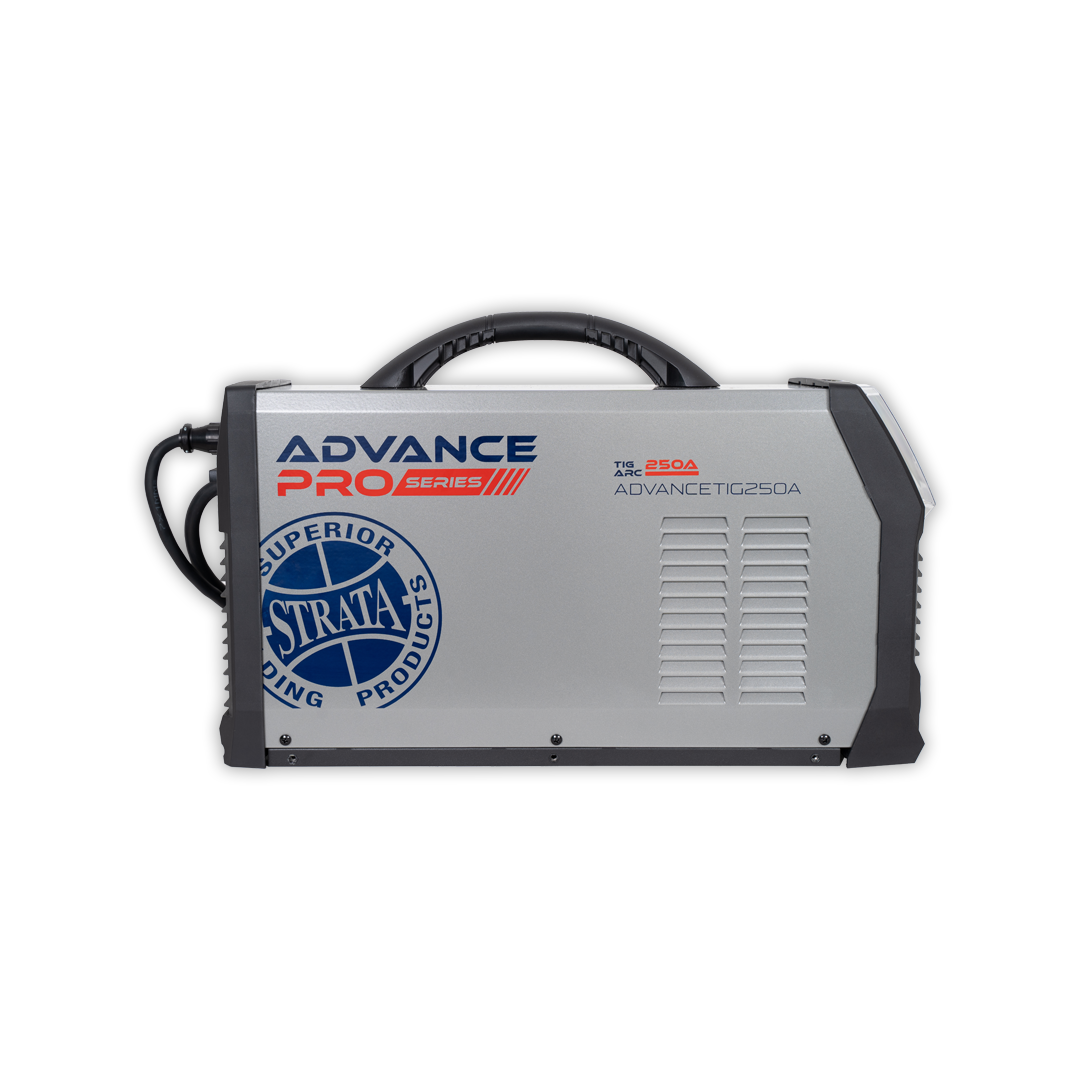

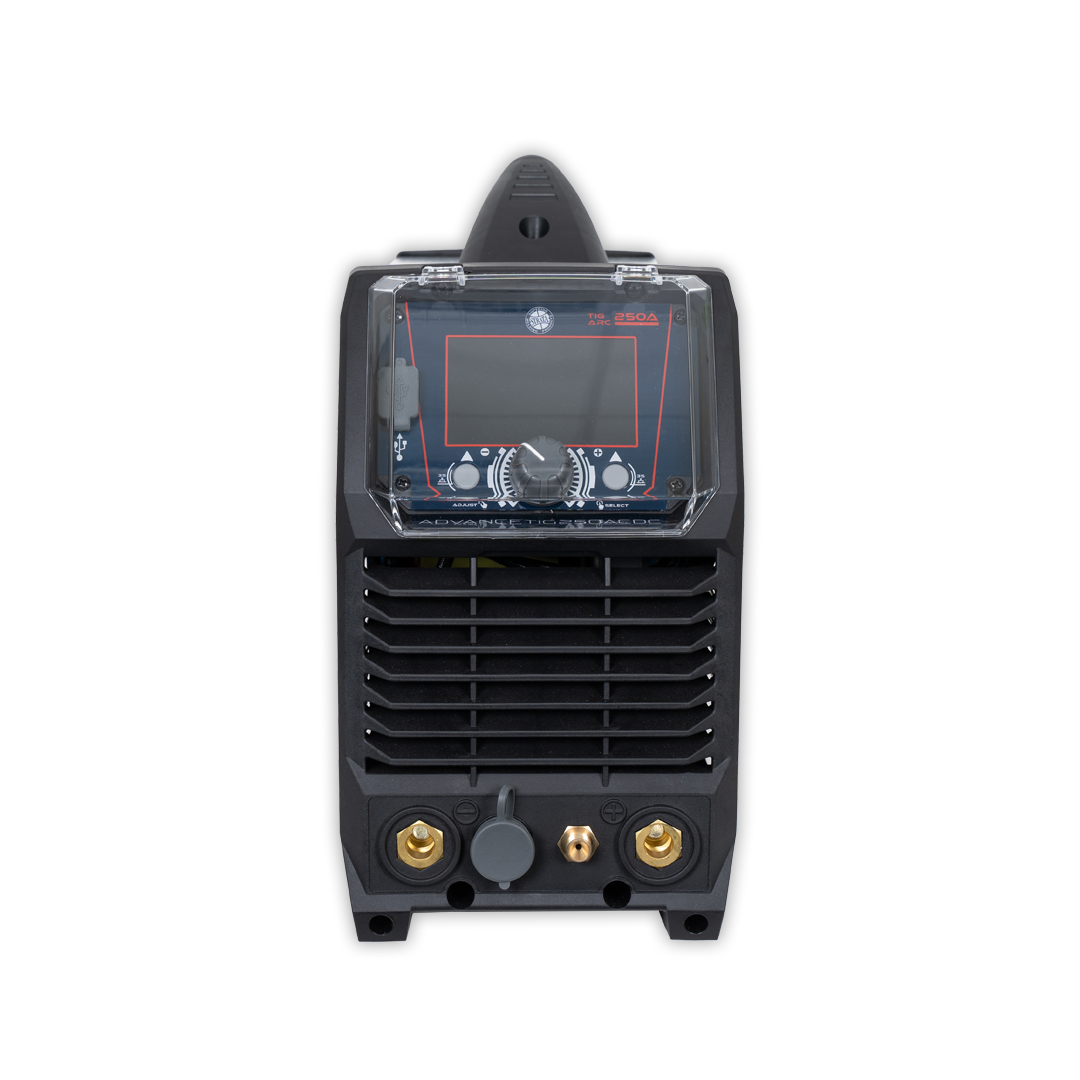

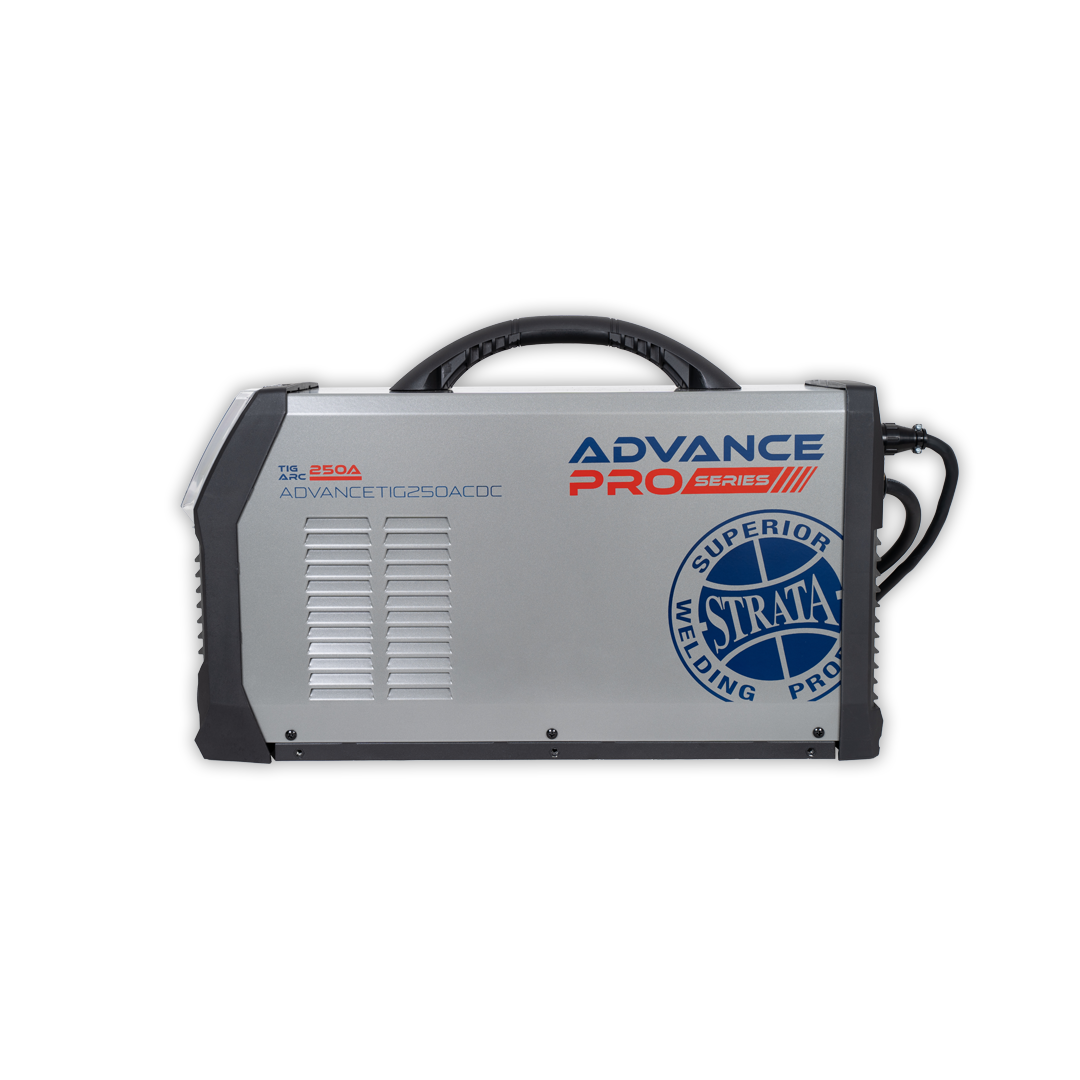

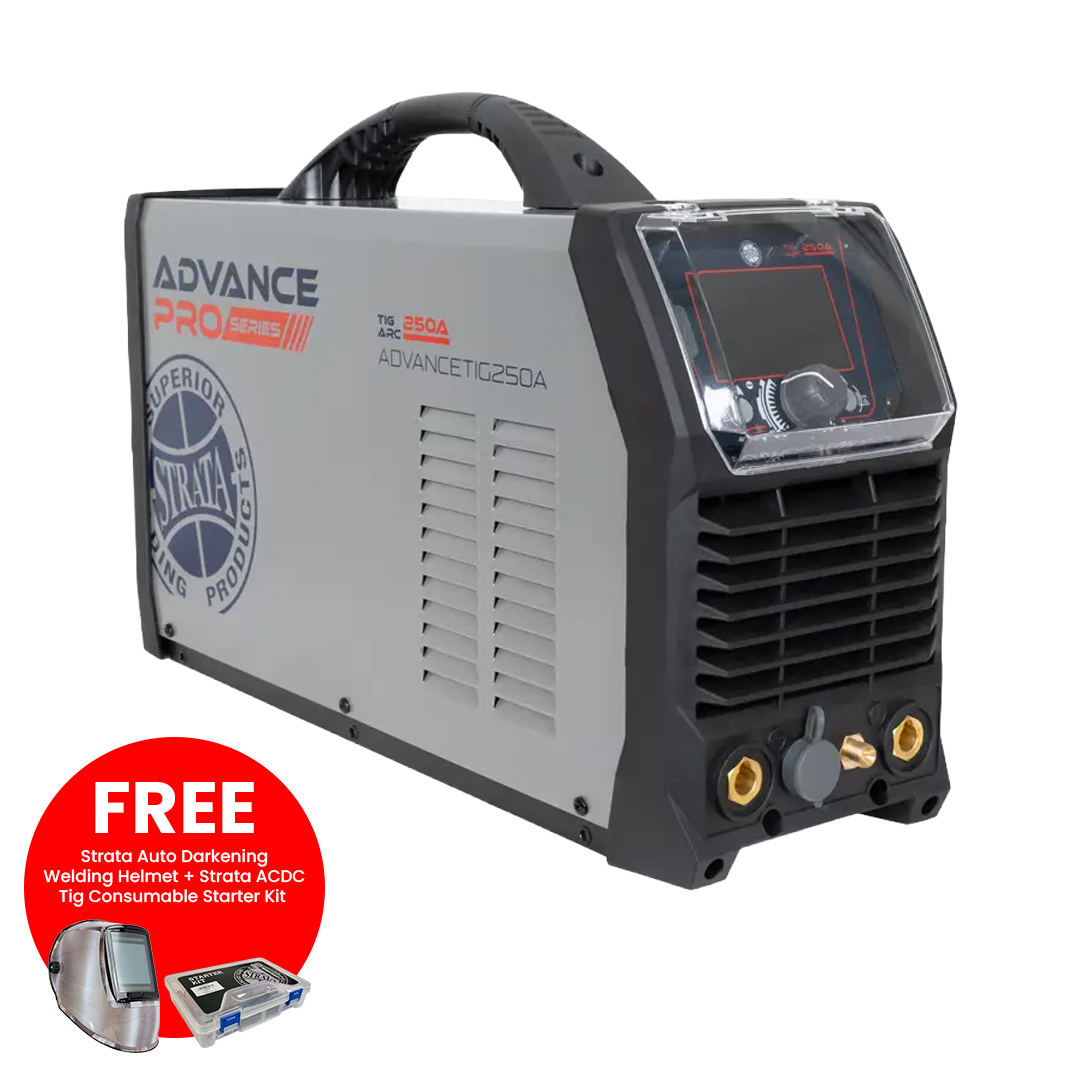

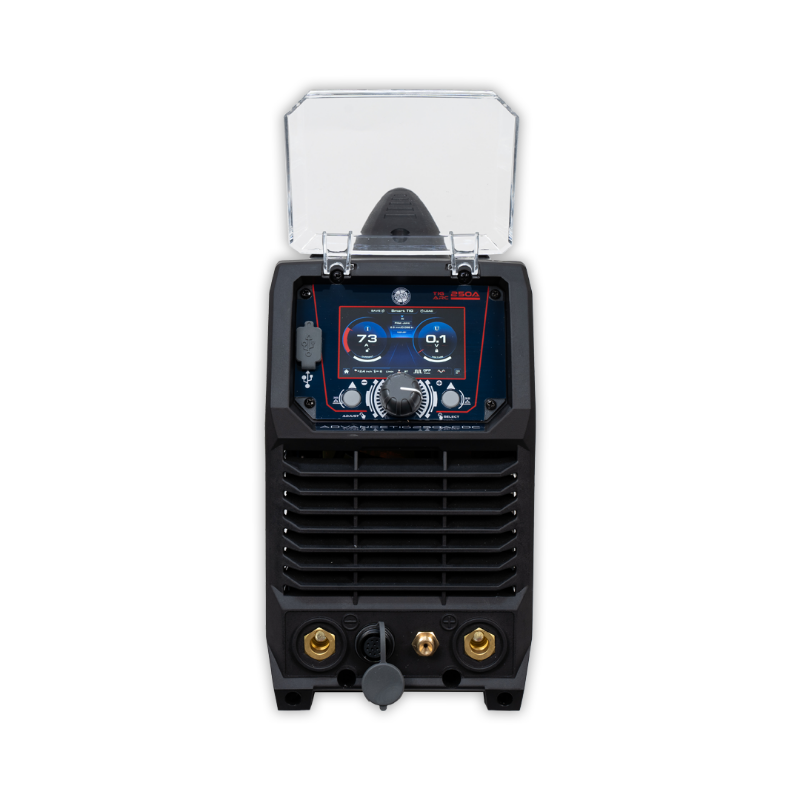

Strata AdvanceTig250ACDC 250A TIG/ARC Inverter Welder

Free Shipping
strata /
SKU: 39553

Pre-order now for delivery from 9th December 2024

The AdvanceTig250ACDC delivers 250A power with AC/DC pulse welding, Synergic settings, and a full-color LCD—perfect for achieving precision and reliability in tough industrial and custom applications.

$ 2,795 .00 Excl GST
$ 3,214.25 Incl GST
Overview

Product Overview

Strata AdvanceTig250ACDC 250A TIG/ARC Inverter Welder

Pre-order now for delivery from 9th December 2024

Advance your welding capabilities with the AdvanceTig250ACDC. This powerhouse delivers a 250A output with AC/DC pulse welding and innovative Synergic settings for effortless parameter adjustments. Whether you're working on industrial applications or intricate custom jobs, the full-color LCD screen and memory settings make it easy to achieve perfect results every time. With enhanced safety features and generator compatibility, it’s built for the toughest conditions.

Key Features

250A Output for Heavy-Duty Applications
The AdvanceTig250ACDC delivers up to 250A of power, allowing you to handle a variety of welding tasks, including TIG and MMA, with ease. It can weld electrodes up to 4.0mm, making it suitable for a range of materials and thicknesses.

Advanced TIG Features for Precision Welding
The AdvanceTig250ACDC excels in TIG welding with a host of advanced features. Its AC/DC mix and enhanced fusion capabilities enable faster TIG welding speeds and improved results for aluminum applications. The machine provides AC sine, square, triangle, and mixed wave options for ultimate control in any AC TIG welding scenario. TIG Smart Set Synergic Mode ensures effortless parameter adjustments based on material, thickness, and joint type, while the electronic HF TIG arc ignition system offers contamination-free starts with low electromagnetic interference. Dual Lift TIG and HF Start modes provide versatility for welding near sensitive electronic equipment, and spot welding mode allows precise work on very thin materials without heat distortion. With 2T, 4T, and Bi-Level trigger modes and dual remote control options (including wired and wireless foot pedals), the machine ensures unparalleled precision and ease of use for any TIG welding task.

Memory Settings for Job Efficiency
The machine's 20 memory settings allow operators to save and recall control parameters for specific jobs, reducing setup time and ensuring consistent results across repeat tasks.

Modular Integrated Water Cooler Option
For extended operations, the AdvanceTig250ACDC supports an optional integrated water cooler module. This compact and portable solution enables the use of water-cooled torches and includes low coolant sensor protection for added safety.

Rugged, Lightweight Design
The industrial-grade IP23 casing offers resistance to damage, moisture, and corrosion, while the lightweight, compact design ensures portability for on-site work. Production-tested at 440V, it is built to withstand extreme conditions for long-term reliability.

MMA Welding Features and Energy Efficiency
The AdvanceTig250ACDC delivers exceptional MMA welding performance with adjustable arc force, hot start, and automatic anti-stick controls, ensuring greater ease of use and improved weld quality, even for challenging tasks. Its Active PFC Technology enhances energy efficiency and duty cycle, enabling safe operation with long extension leads. The generator-friendly design ensures reliable performance on off-grid worksites, protecting against power surges for consistent operation in demanding environments.

Intelligent Cooling and Gas Connections
The smart cooling fan system reduces noise and minimizes the intake of contaminants, enhancing machine lifespan. A quick-connect gas inlet fitting allows for tool-free connection, streamlining setup and operation.



The Strata AdvanceTig250ACDC is the ultimate tool for professionals who demand advanced features, intuitive controls, and reliable performance. From industrial aluminum welding to intricate custom jobs, this machine excels in every application. With its AC/DC capabilities, Synergic settings, and rugged yet portable design, the AdvanceTig250ACDC ensures precision, efficiency, and durability for every job.

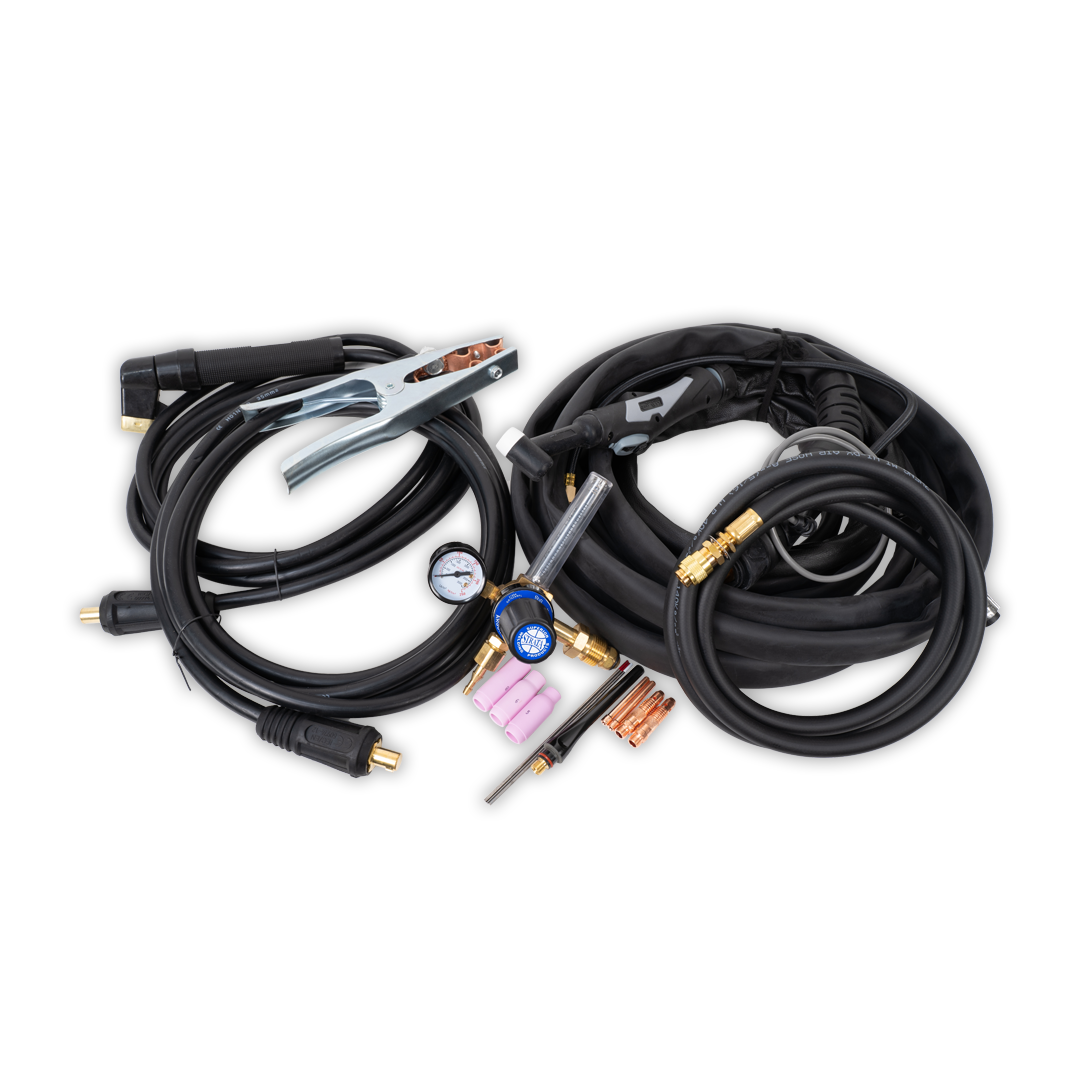

The AdvanceTig250ACDC is supplied with a 4M Earth Lead, 4M Arc Lead, an 8M PRO26 TIG Torch, a 2-Stage Flowmeter Argon Gas Regulator, and a 2M QC Gas Hose Kit. Optional extras include a TIG Torch Consumables Kit, WP26 TIG Torch (8m), and wired or wireless foot pedal controls for enhanced flexibility and precision.

Benefits

Key Features

Max Output (TIG/ARC)
Professional TIG Welding of; Aluminium, Mild Steel, Stainless & More
Max Electrode Size
Input Power Supply
Overview

Specifications

Dimensions (LxWxH) / 580 x 189 x 350mm
Weight / 15kg
Input Power Supply / 230V AC 15A 50/60Hz
Input Power Supply Tolerance / 90-275V AC
Maximum Input Current / 38A
Generator Capacity / 9kVA
MMA Current Output / 10-250A
MMA O/C Voltage / 78V
MMA Duty Cycle / 250A@30%, 210A@60%, 160A@100%
AC/DC TIG Current Output / 5-250A
DC TIG Duty Cycle / 250A@30%, 210A@60%, 160A@100%
AC TIG Duty Cycle / 250A@25%, 210A@60%, 160A@100%
TIG Up/Down Slope Adjustment / 0-10S
TIG Gas Post/Pre Flow Adjustment / 0-10S
TIG Pulse Frequency / 0.5-200Hz
TIG Pulse Width Range / 5-95%
AC TIG Waveform / Square, Sine, Triangle, Multi Wave
Insulation Class / IP23
AC Frequency Adjustment / 50-250Hz
Power Efficiency / 80%
Power Factor / 0.75
Standards / AS/ICE60974-1:2012
Warranty / 48 Months
Your Questions Answered

FAQ's

What types of welding applications are suitable for the AdvanceTig250ACDC?

What are the benefits of TIG Smart Set Synergic Mode?

How does the machine handle high-precision tasks on thin materials?

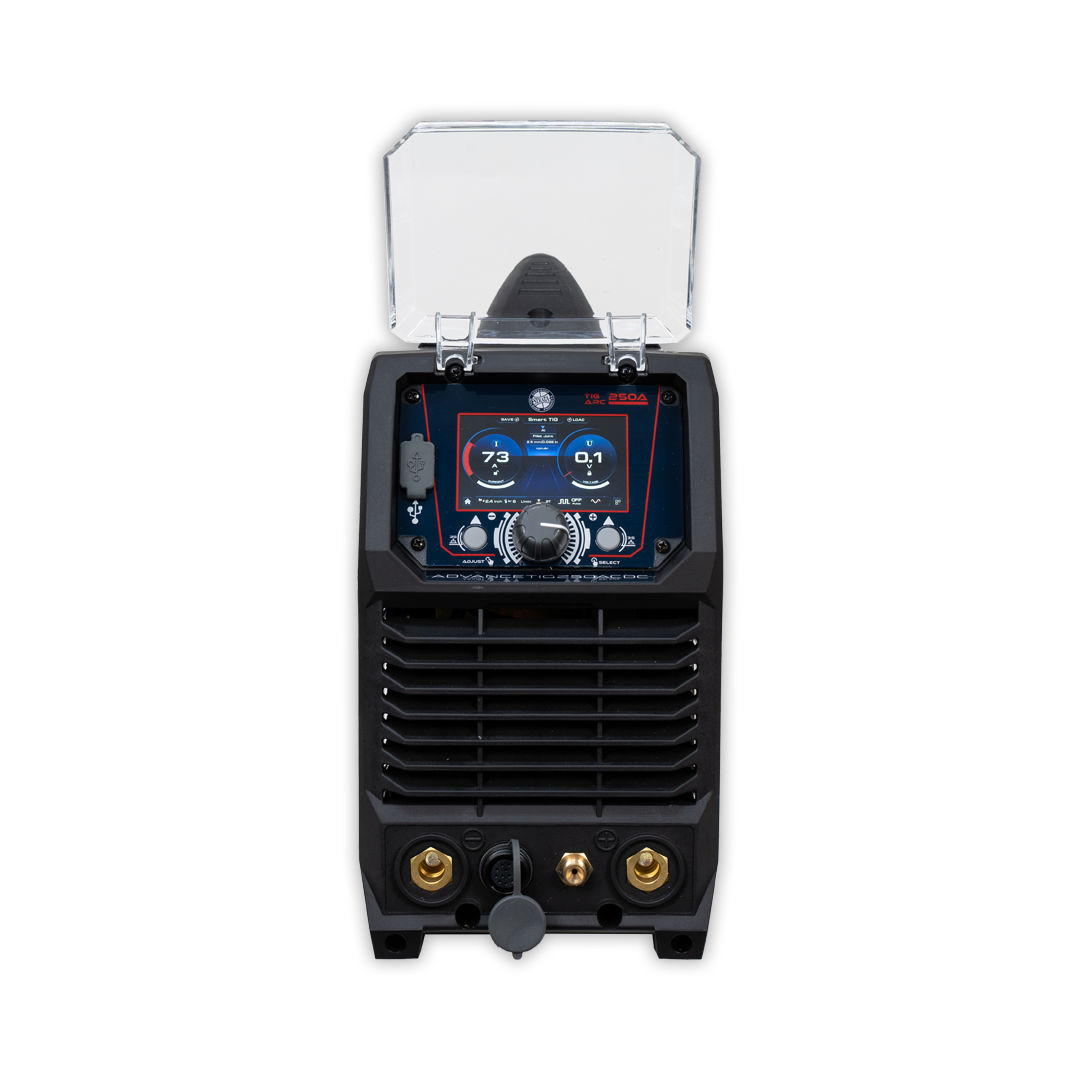

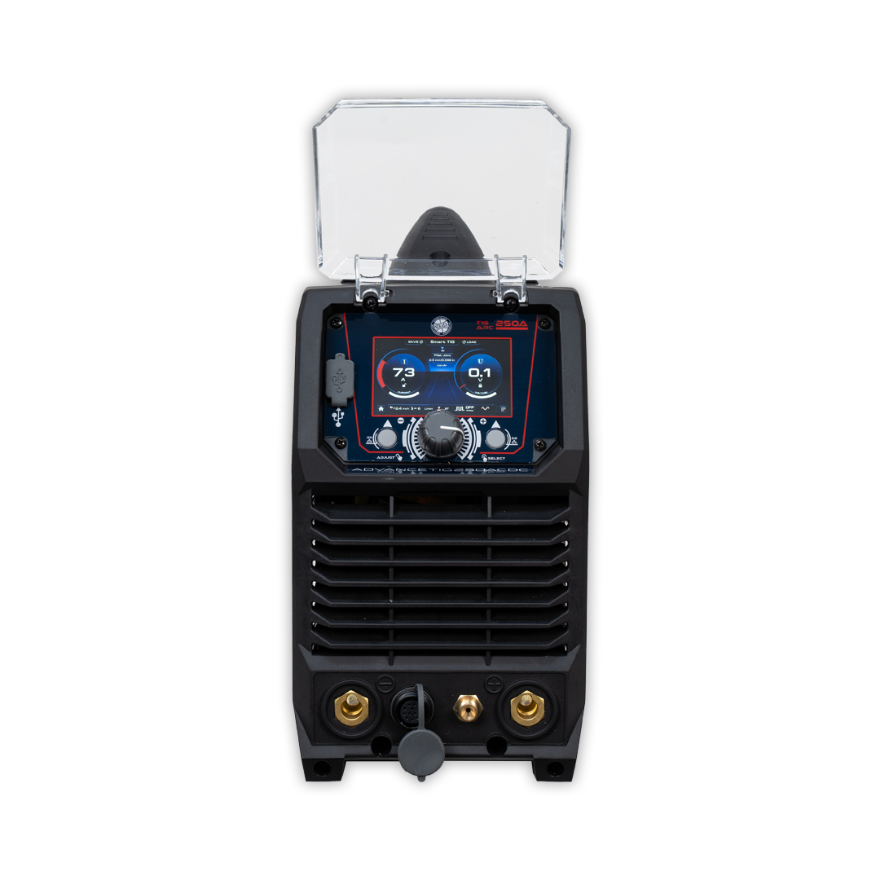

How does the Full-Colour LCD Control Screen enhance welding operations?
