Strata EziMig205C Mig Welder Package

Brand: Strata
Style: Strata
SKU: 35827
Qualifies for Free Shipping

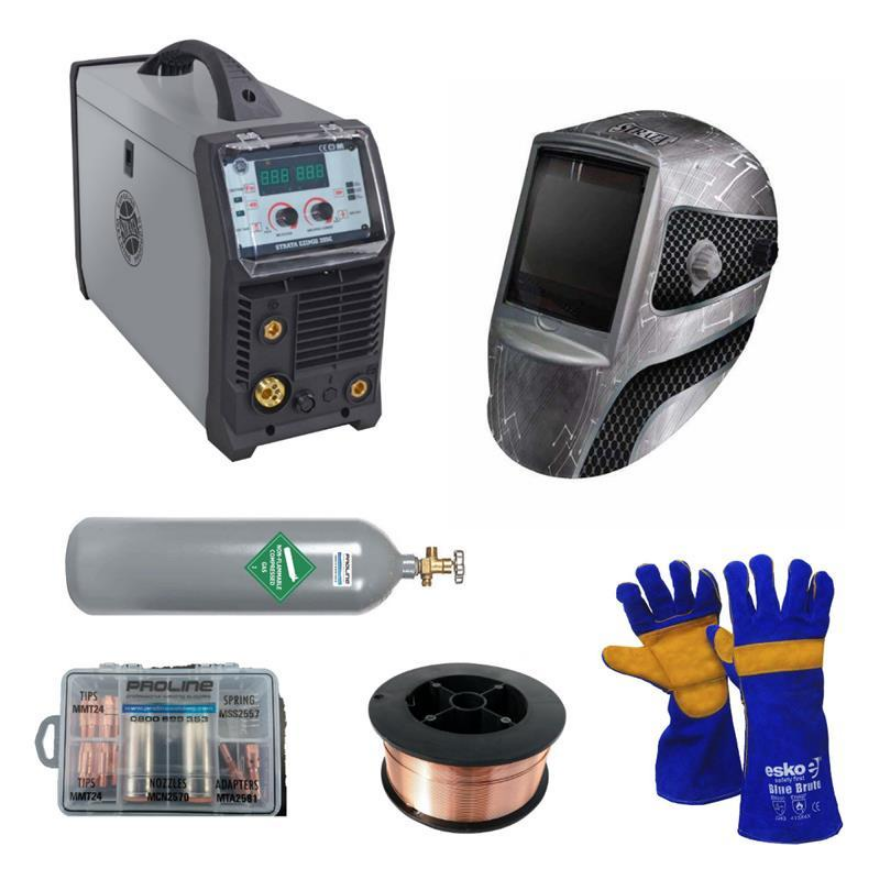

Strata EziMig205C Mig Welder Package, Supplied with CO2 Cylinder, 5KG 8mm Mig Wire, Mig Torch Consumable Kit, SV3000 Welding Helmet, Welding Gloves
$ 1,549 .00
$ 1,781.35 Incl GST
Strata EziMig205C Mig Welder Package

Strata EziMig205C Mig Welder Package

Now only:
$ 1,549 .00
$ 1,781.35 Incl GST
Product Overview
Learning Center
Product Overview

Strata EziMig205C Mig Welder Package

Ultra-compact and easy to use, the EZIMIG 205C multi-process welder is a must-have for today's industrial professionals. With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Key Features

- Single phase, 230V, 15A input power

- Gas and gasless wire set-up

- Light-weight aluminium chassis

- IP23 Industrial rated protection provides increased durability

- Spool-gun connection

- Adjustable pre-flow, post-flow, burn-back and soft-start

- Adjustable waveform (inductance) for greater arc control and smoother welding

- 2T/4T trigger control

- MIG Spot Welding Mode

- 57 OCV for MMA welding

- Generator-friendly (10KVA)

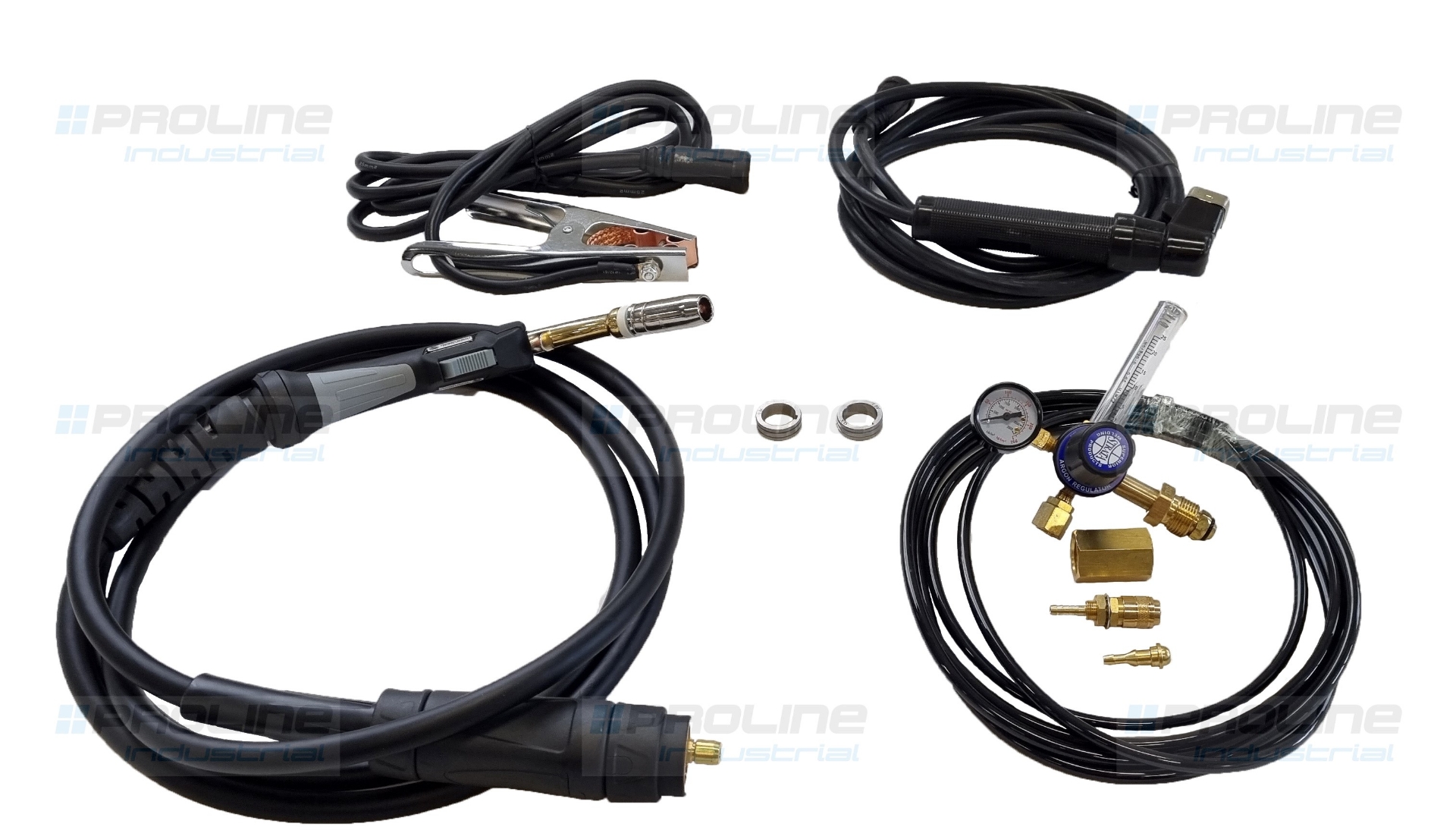

- Power source includes: Binzel style 250 Mig torch, earth & arc set, regulator & CO2 adaptor, gas hose with quick connect fittings

- Package includes: CO2 Cylinder, 5KG 8mm Mig Wire, Mig Torch Consumable Kit, SV3000 Welding Helmet, Welding Gloves


Products specifications
Input Power Supply230V AC 15A 50/60Hz
MIG Output Voltage16V - 24V
MIG Output Current40A - 200A
Input Power Tolerance230+/-10%V
Maximum Input Current42A
MIG Duty Cycle200A@25%, 155A@60%, 120A@100%
MIG Drive RollersV Groove: .6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
MIG Wire Spool SizeD200 5kg
Wire Feeding Speed1.5 - 16.5m/min
MMA Current Output10A - 160A
MMA O/C Voltage63V
MMA Duty Cycle160A@150% 140A@60% 110A@100%
Insulation ClassIP23
MMA Rod Size1.6-5.0mm
Warranty24 month* with registration
Power Efficiency0.85
Power Factor0.65
