Strata EziMig205C Mig Welder

Overview

Product Overview

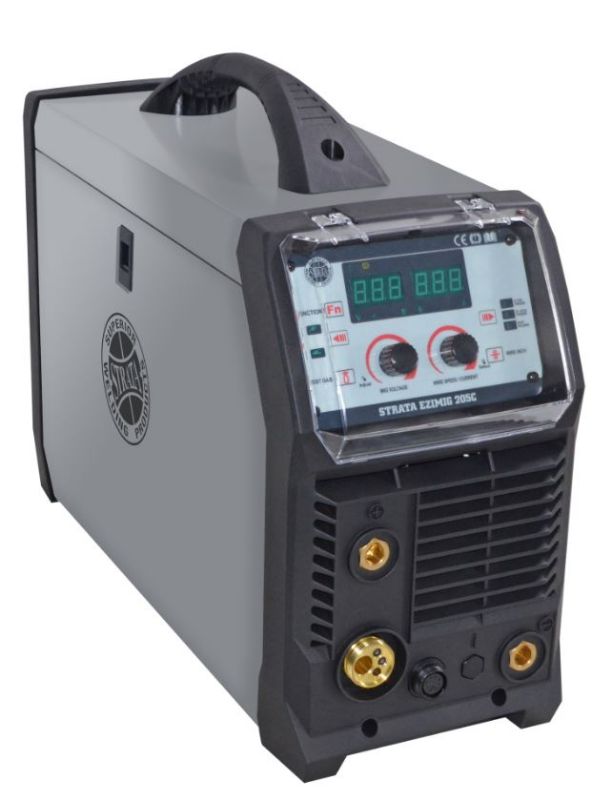

Ultra-compact and easy to use, the Strata EZIMIG 205C multi-process welder is the perfect site welder for today's industrial professionals. The Ezi Mig 205C is compact & lightweight, yet packs enough punch to weld with 1.2mm flux core wire! With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Key Features

Single phase, 230V, 15A input power
Gas and gasless wire set-up
Light-weight aluminium chassis
IP23 Industrial rated protection provides increased durability
Spool-gun connection
Adjustable pre-flow, post-flow, burn-back and soft-start
Adjustable waveform (inductance) for greater arc control and smoother welding
2T/4T trigger control
MIG Spot Welding Mode
57 OCV for MMA welding
Generator-friendly (10KVA)

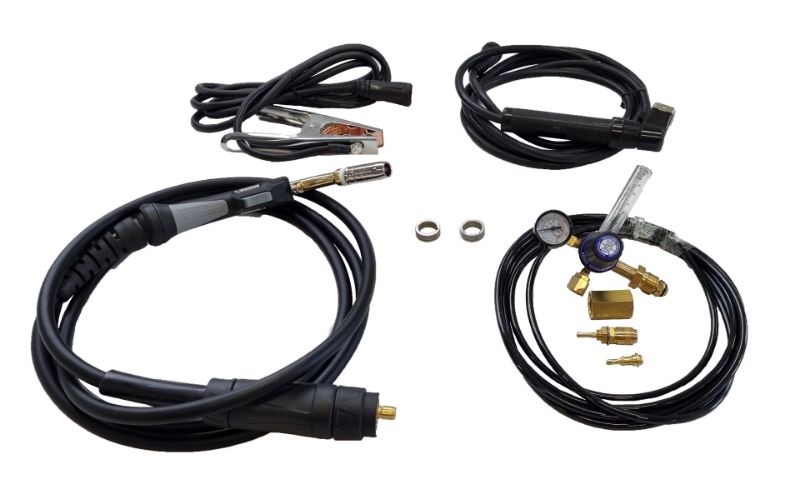

Includes: Binzel style 250 Mig torch, earth & arc set, regulator & CO2 adaptor, gas hose with quick connect fittings

Replaced by Strata EziMig185C 180A Synergic Mig/MMA Welder

Resources

Downloads

Overview

Specifications

Input Power Supply / 230V AC 15A 50/60Hz
MIG Output Voltage / 16V - 24V
MIG Output Current / 40A - 200A
Input Power Tolerance / 230+/-10%V
Maximum Input Current / 42A
MIG Duty Cycle / 200A@25%, 155A@60%, 120A@100%
MIG Drive Rollers / V Groove: .6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
MIG Wire Spool Size / D200 5kg
Wire Feeding Speed / 1.5 - 16.5m/min
MMA Current Output / 10A - 160A
MMA O/C Voltage / 63V
MMA Duty Cycle / 160A@150% 140A@60% 110A@100%
Insulation Class / IP23
Standards / EN60974-1:2012
MMA Rod Size / 1.6-5.0mm
Warranty (Months) / 48 Months
Power Efficiency / 0.85
Power Factor / 0.65
