Seismic Rated! Co2 Sheilded Flux Cored Mig Wire Available in 1.2mm & 1.6mm. Ideal for Shipbuilding, General & Structural Fabrication

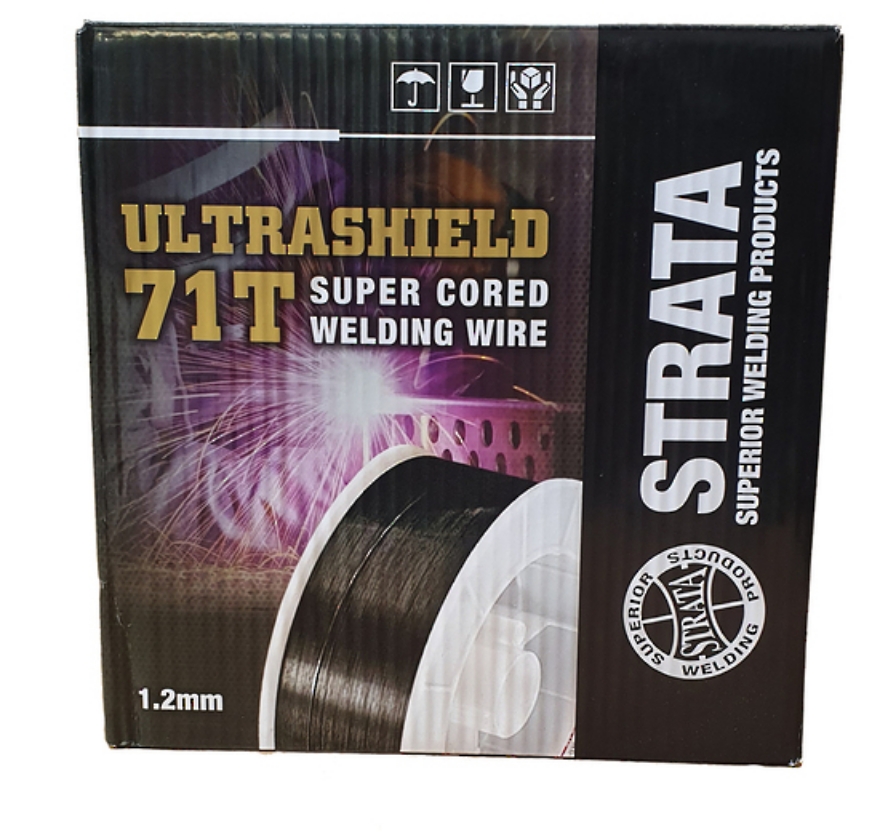

Strata Ultrashield 71T Mig Wire 15kg AWS A5.36, E71T1-C1A0-CS1
Ultrashield 71T is a titania flux cored mig wire for all position welding. Its impact value is very good, arc is smooth and slag detachability is excellent. This is an all-positional welding wire excellent for shipbuilding, bridge building and structural fabrications.
- Strata Ultrashield 71T Mig Wire 1.2mm (204798) or 1.6mm (204799)
- Shield with 100% Co2 gas.
- Spool Size/Weight: 300mm/15kg
- Wire Diameter size: 1.2mm or 1.6mm
- Good Preformance & Low Spatter
- Smooth & Stable Arc with Fast Freezing Slag
CURRENT RANGE DC(+)
| Φ mm | Polarity | Current (A) | Voltage (V) |
| 1.2mm | DC+ | 120-320 | 18-33 |
| 1.6mm | DC+ | 170-400 | 22-38 |
TYPICAL WIRE CHEMISTRY
| C | Si | Mn | P | S |
| 0.03 | 0.51 | 1.26 | 0.010 | 0.011 |
Typical Charpy V-Notch Properties
Impact Value 0°C: 128J
Impact Value -20°C:81J
Typical mechanical properties of weld metal
| Elongation | Tensile
Strength | Yield
Strength | Temp
ºC (°F) | CVN-Impact Value
J (ft-lbs) |
| 28.0% | 572 MPa | 545 MPa | 0 (32)
-20 (-4) | 110 (81)
70 (52) |
CLASSIFICATION
AWS: A5.36, E71T1-C1A0-CS1
EN: ISO 17632-A-T 42 2 PC 1
H10
