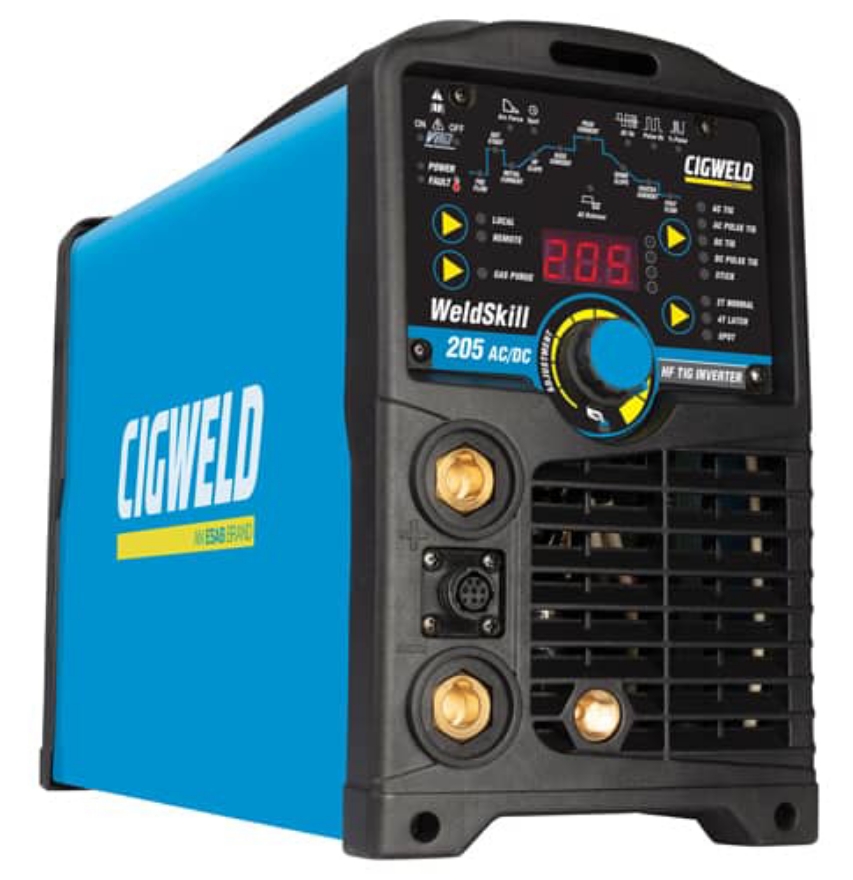

    Weldskill Cigweld 205 ACDC Tig

    $1,997.00 excl GST
    $2,296.55 Incl GST
    Weldskill Cigweld 205 AC/DC Tig
    SKU: 205428
    Please give us a brief description of your intended application (we may have a better solution.)

    The CIGWELD WeldSkill 205 AC DC TIG Welder has taken the same great features and robust power from its predecessor and compacted it down into a smaller, lighter and more portable TIG Inverter that weighs a slight 12kg.

    The 205 AC DC TIG Welder is a 15 Amp 240 volt, digitally controlled, High Frequency AC/DC TIG (GTAW) and Stick (MMAW) inverter. This unit is specifically designed for the budget conscious user who doesn’t want to sacrifice on quality or weld results. With its compact casing and IP23S rating the 205 AC/DC is ideal for indoor or outdoor use around the workshop and is easy to carry and manoeuvre into hard to reach places when doing light fabrication and maintenance of mild steels, stainless steels and aluminium.

    In TIG mode the unit has all the features required to customise your welding preferences – High Frequency (HF), Up/Down Slope, Pre/Post Flow, 2T/4T Trigger Function, Spot Mode and Gas Purge for AC or DC TIG welding. When welding in AC only, Frequency and Wave Balance can be refined with impressive adjustability and when operating in Pulse Mode the user has full flexibility to adjust Frequency, Width and Peak Current.

    In Stick mode the 205 AC/DC features VRD, Anti-Stick and Hot Start and can weld with up to 4mm electrodes.

    The CIGWELD WeldSkill 205 AC/DC comes as a complete kit with an 8m Remote Control TIG Torch, Argon Regulator/Flowmeter, 4m Electrode Holder and Work Clamp and a TIG Accessory Kit with tungstens, nozzles, collets etc. to get you up and welding in no time..

    Products specifications
    Current range10-205A (TIG Mode), 10-160A (STICK Mode)
    Dimension324H x 176W x 430D mm
    Generator Requirement10kVA
    Open circuit voltage(VRD On) <35V, (VRD Off) 63V
    ProcessesAC/DC HF TIG (GTAW), Stick (MMAW)
    Supply Voltage240V, +/- 15%, 50/60Hz
    Weight12kg (Power Source), 22.5kg (Package)
    Supply Plug & Lead15A
    Protection classIP23S
    StandardsAS 60974.1-2006, IEC 60974-1
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The CIGWELD WeldSkill 205 AC DC TIG Welder has taken the same great features and robust power from its predecessor and compacted it down into a smaller, lighter and more portable TIG Inverter that weighs a slight 12kg.

    The 205 AC DC TIG Welder is a 15 Amp 240 volt, digitally controlled, High Frequency AC/DC TIG (GTAW) and Stick (MMAW) inverter. This unit is specifically designed for the budget conscious user who doesn’t want to sacrifice on quality or weld results. With its compact casing and IP23S rating the 205 AC/DC is ideal for indoor or outdoor use around the workshop and is easy to carry and manoeuvre into hard to reach places when doing light fabrication and maintenance of mild steels, stainless steels and aluminium.

    In TIG mode the unit has all the features required to customise your welding preferences – High Frequency (HF), Up/Down Slope, Pre/Post Flow, 2T/4T Trigger Function, Spot Mode and Gas Purge for AC or DC TIG welding. When welding in AC only, Frequency and Wave Balance can be refined with impressive adjustability and when operating in Pulse Mode the user has full flexibility to adjust Frequency, Width and Peak Current.

    In Stick mode the 205 AC/DC features VRD, Anti-Stick and Hot Start and can weld with up to 4mm electrodes.

    The CIGWELD WeldSkill 205 AC/DC comes as a complete kit with an 8m Remote Control TIG Torch, Argon Regulator/Flowmeter, 4m Electrode Holder and Work Clamp and a TIG Accessory Kit with tungstens, nozzles, collets etc. to get you up and welding in no time..

    Products specifications
    Current range10-205A (TIG Mode), 10-160A (STICK Mode)
    Dimension324H x 176W x 430D mm
    Generator Requirement10kVA
    Open circuit voltage(VRD On) <35V, (VRD Off) 63V
    ProcessesAC/DC HF TIG (GTAW), Stick (MMAW)
    Supply Voltage240V, +/- 15%, 50/60Hz
    Weight12kg (Power Source), 22.5kg (Package)
    Supply Plug & Lead15A
    Protection classIP23S
    StandardsAS 60974.1-2006, IEC 60974-1
