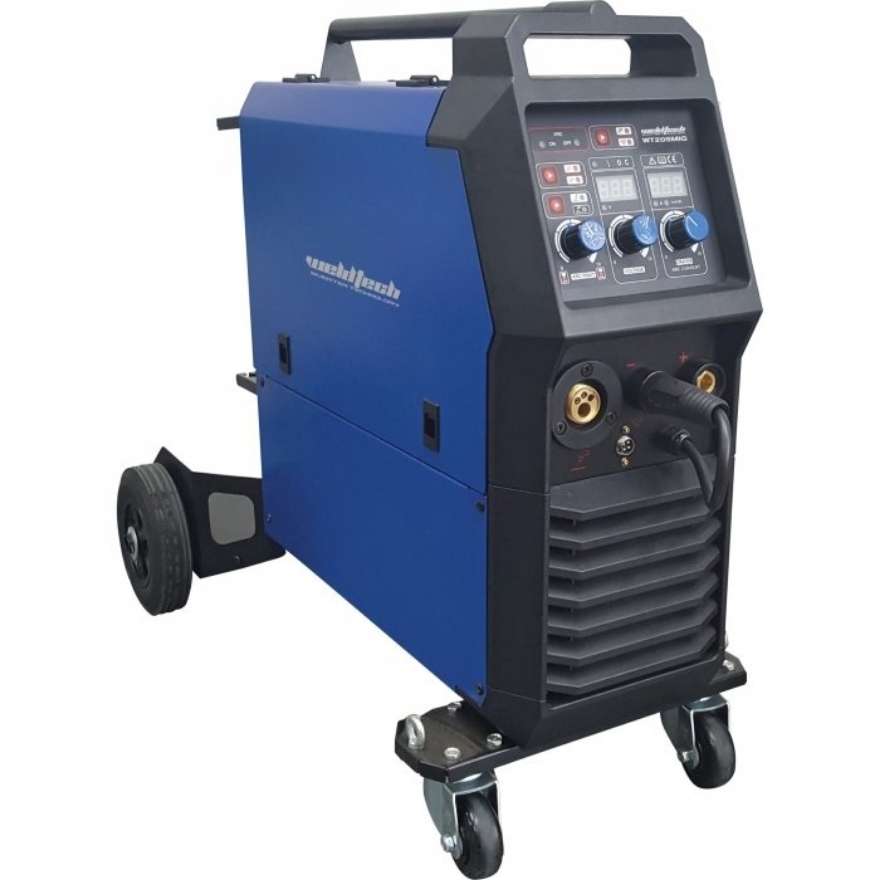

Weldtech 200A Inverter Trolley MIG/MMA Welder WT205

Brand: Weldtech
SKU: 18944
Weldtech 200A Inverter Trolley MIG/MMA Welder WT205MIG
$ 1,395 .00 excl GST
$ 1,604.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Weldtech WT205MIG 200A inverter welder has cutting edge Inverter Technology with MIG and ARC processes available. It produces professional results on the workshop or on-site projects.

It comes with a 3m Binzel Euro Connect MIG torch, 3m MMA lead with twist lock electrode holder, 3m earth lead, argon flow meter gas regulator, CO2 cylinder regulator adaptor & drive rollers

Key Features:

  • MIG and ARC welding
  • Latest IGBT inverter technology ensures smooth and stable welding output and increased reliability
  • Heavy-duty integrated trolley with lifting points for easy and convenient manoeuvrability.
  • Digital Microprocessor control system
  • Spool gun connection
  • 4 Roll metal wire feed unit for powerful and smooth wire feed
  • Reversible polarity MIG welding operation - suitable for gas and gasless welding operation.
  • Electronic Inductance control for splatter reduction and weld bead shape control.
  • MIG Duty Cycle 200A @ 15%, 155A @ 100%
  • MMA Duty Cycle 200A @ 10%, 155A @ 100%
  • 230V single phase on 15A plug

Specifications

Products specifications
Input Power Supply Tolerance+/-15%
Power Input230V AC 15A 50/60Hz
Max Inpurt Current41.7A
Generator Capacity9.5kVA
MIG Output Current40A-200A
Mig Voltage Output15V-24V
Duty Circle200A@ 15% 155A@100%
Insulation ClassIP21
Weight40kg
Dimention900x520x765mm
Power Efficiency0.8
Power Factor0.73
Wire Feeding Speed2-13 m/minute
MIG Wire Spool SizeD200mm/D300mm 5KG/15KG
MMA Current Output25A-200A
MMA Rod Size1.6-5.0mm
MMA O/C Voltage58V

The Weldtech WT205MIG 200A inverter welder has cutting edge Inverter Technology with MIG and ARC processes available. It produces professional results on the workshop or on-site projects.

It comes with a 3m Binzel Euro Connect MIG torch, 3m MMA lead with twist lock electrode holder, 3m earth lead, argon flow meter gas regulator, CO2 cylinder regulator adaptor & drive rollers

Key Features:

  • MIG and ARC welding
  • Latest IGBT inverter technology ensures smooth and stable welding output and increased reliability
  • Heavy-duty integrated trolley with lifting points for easy and convenient manoeuvrability.
  • Digital Microprocessor control system
  • Spool gun connection
  • 4 Roll metal wire feed unit for powerful and smooth wire feed
  • Reversible polarity MIG welding operation - suitable for gas and gasless welding operation.
  • Electronic Inductance control for splatter reduction and weld bead shape control.
  • MIG Duty Cycle 200A @ 15%, 155A @ 100%
  • MMA Duty Cycle 200A @ 10%, 155A @ 100%
  • 230V single phase on 15A plug
Products specifications
Input Power Supply Tolerance+/-15%
Power Input230V AC 15A 50/60Hz
Max Inpurt Current41.7A
Generator Capacity9.5kVA
MIG Output Current40A-200A
Mig Voltage Output15V-24V
Duty Circle200A@ 15% 155A@100%
Insulation ClassIP21
Weight40kg
Dimention900x520x765mm
Power Efficiency0.8
Power Factor0.73
Wire Feeding Speed2-13 m/minute
MIG Wire Spool SizeD200mm/D300mm 5KG/15KG
MMA Current Output25A-200A
MMA Rod Size1.6-5.0mm
MMA O/C Voltage58V
