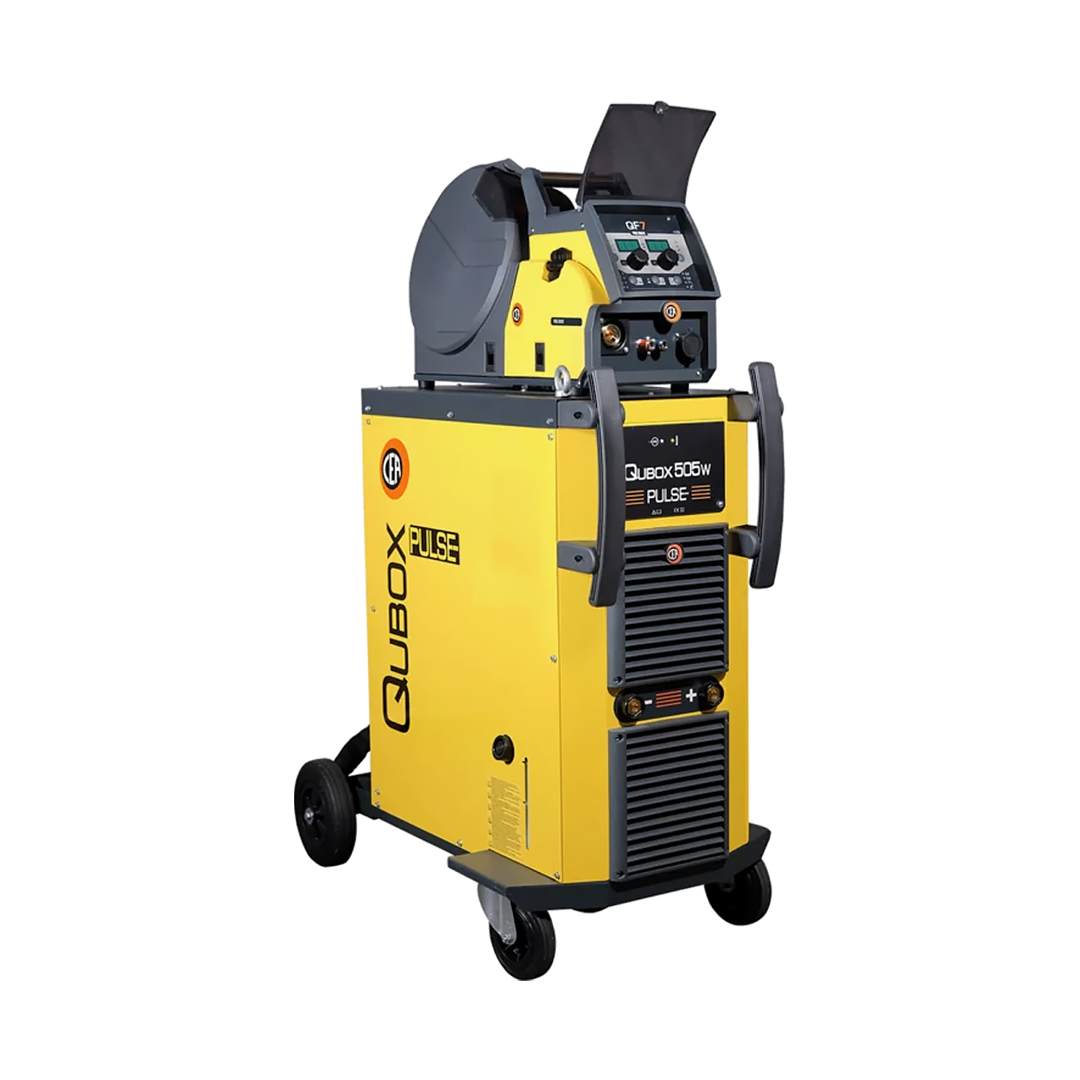

CEA 500A Pulse MIG Multiprocess Welder

CEA 500A Pulse MIG Multiprocess Welder

The CEA QUBOX MODULAR PULSE 5005 500A Three Phase Multiprocess Welder is a heavy-duty industrial inverter welding system designed for structural steel fabrication, manufacturing and demanding workshop applications. Operating on a 400V three-phase supply, it delivers up to 500A welding output with a 420A continuous duty cycle at 40°C. Featuring advanced vision.PULSE technology, synergic welding controls and a separate QF 7 W PRO DRIVE wire feeder, it provides precise, consistent welding performance for high-productivity industrial environments.

Key Features & Benefits

Powerful 500A Industrial Welding Performance
Delivers up to 500A welding output at a 60% duty cycle and 420A at 100% duty cycle (40°C), providing reliable performance for heavy plate fabrication and continuous industrial welding applications.

Advanced vision.PULSE MIG Technology
Features vision.PULSE technology to reduce heat input, minimise distortion and improve welding travel speeds, producing cleaner, more consistent welds while reducing grinding and rework.

Intelligent Synergic Welding Control
Features synergic welding programs that automatically adjust parameters based on material type, wire diameter and shielding gas, simplifying setup and ensuring consistent, repeatable weld quality.

Versatile Multiprocess Welding Capabilities
Combines MIG/MAG, Pulsed MIG, TIG Lift and MMA welding in one powerful system, providing flexibility for structural steel fabrication, industrial repairs and demanding workshop applications.

QF 7 W PRO DRIVE Wire Feeding System
Features a separate QF 7 W PRO DRIVE wire feeder with four large-diameter drive rolls and 300 mm spool capacity, delivering smooth, consistent wire feeding while allowing flexible positioning near the workpiece.

400V Three-Phase Industrial Power Supply
Operates on a 400V three-phase, 50/60 Hz electrical supply with ±20% voltage tolerance, delivering dependable power for demanding industrial applications with a 40A delayed fuse requirement.

Durable Industrial Construction
Built with an IP23S protection rating and robust 47 kg power source, supporting dependable operation in industrial environments while accommodating welding currents from 10A to 500A.

Complete Air-Cooled MIG Welding Package
Supplied with the QUBOX MODULAR PULSE 5005 power source, QF 7 W PRO DRIVE wire feeder, 10m air-cooled interconnecting cable, MB36 MIG torch, earth cable with clamp, and gas regulator with flowmeter.
