CEA Mobile 306 Pulse XV 300A Three Phase Pulse MIG / TIG / MMA Welder

CEA Mobile 306 Pulse XV 300A Three Phase Pulse MIG / TIG / MMA Welder

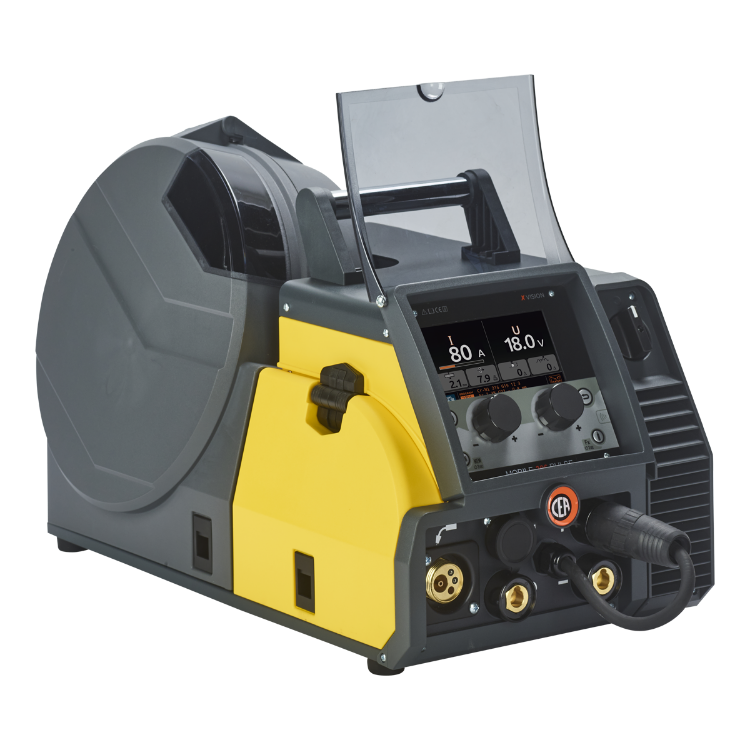

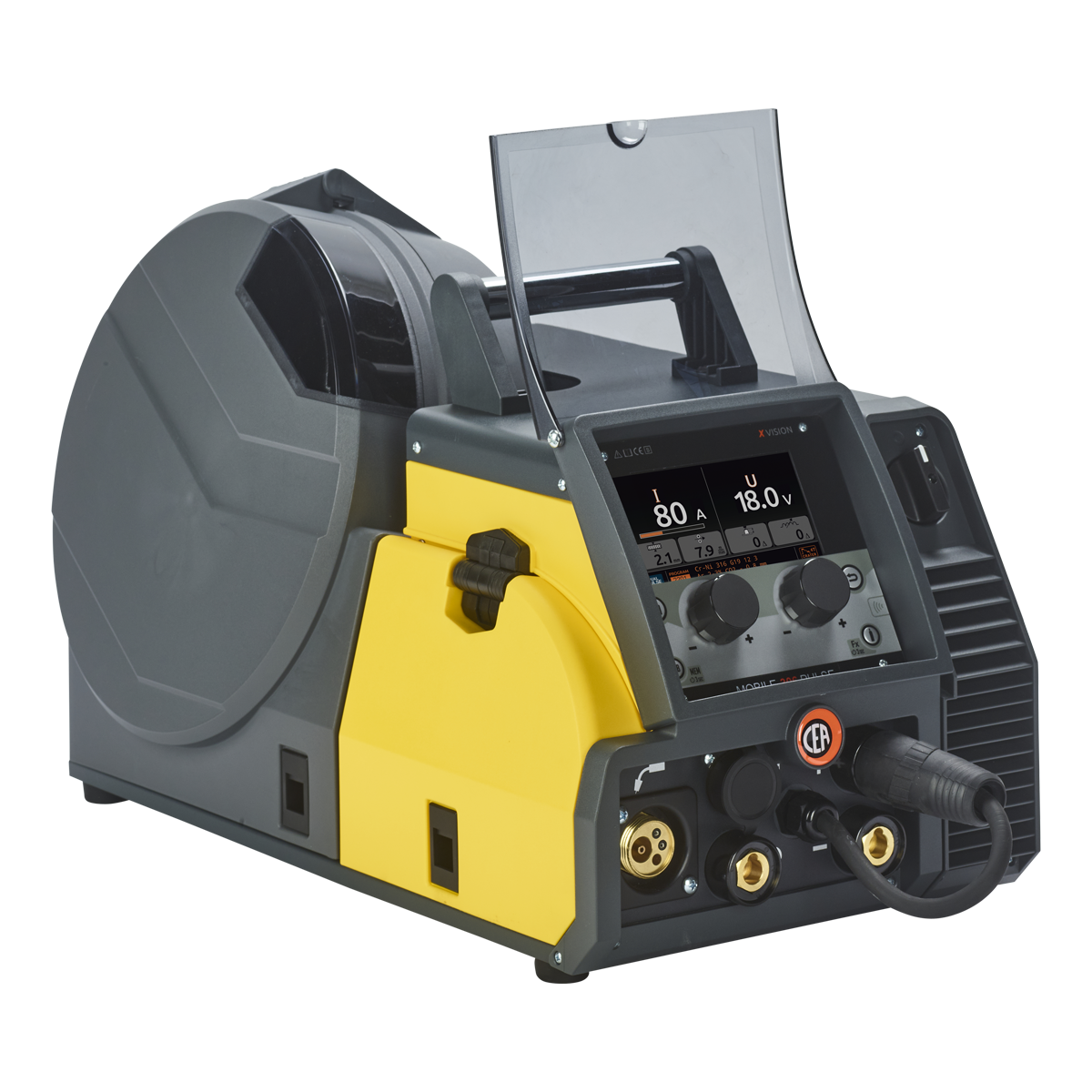

The CEA Mobile 306 Pulse XV 300A Three Phase Pulse MIG / TIG / MMA Welder is an Italian-made multiprocess inverter welder designed for professional fabrication, industrial maintenance and onsite welding applications. Operating on a 400V three-phase supply, it delivers up to 300A welding output with MIG/MAG, Pulse and Dual Pulse MIG, TIG Lift and MMA capabilities. Featuring advanced X Vision LCD controls, synergic welding programs and a compact 20 kg design, it combines precise welding performance with portability and versatility.

Key Features & Benefits

Powerful 300A Three-Phase Welding Performance
Delivers up to 300A output with a 30% duty cycle at 40°C, plus 200A at 60% and 180A at 100% for sustained welding. Ideal for demanding fabrication tasks and longer production runs.

Advanced Pulse & Dual Pulse MIG Technology
Offers Pulse and Dual Pulse MIG welding up to 270A, helping produce clean, low-spatter welds on stainless steel, galvanised steel and aluminium while reducing post-weld cleaning and rework.

Versatile Multiprocess Welding Capabilities
Combines MIG/MAG, Pulse MIG, Dual Pulse MIG, TIG Lift and MMA welding in one machine, providing flexibility for sheet metal fabrication, structural repairs, maintenance and onsite welding applications.

X Vision LCD Interface with Synergic Control
Features an advanced X Vision LCD display with synergic welding programs based on material, wire and shielding gas, simplifying parameter selection and helping operators achieve consistent welding results.

vision.COLD & vision.ULTRASPEED Technology
Includes vision.COLD for controlled heat input when welding thin materials and vision.ULTRASPEED for faster MIG welding, helping minimise distortion and improve productivity across fabrication tasks.

Compact & Portable Italian-Made Design
Built in Italy with a compact 20 kg housing measuring 640 x 325 x 400 mm, delivering powerful three-phase welding performance in a portable design suited to workshops, maintenance and onsite applications.

Reliable 4-Roll Wire Feeding System
Equipped with a 4-roll wire drive using 37 mm diameter rolls, supporting 0.6–1.2 mm welding wire and internal 300 mm spools for consistent wire feeding and reliable performance across different applications.

400V Three-Phase Industrial Power Supply
Designed for a 400V three-phase, 50/60 Hz electrical supply with ±15% voltage tolerance and a 16A delayed fuse requirement, providing dependable operation in professional industrial welding environments.

Complete Multiprocess Welding Power Source
Supplied with the CEA Mobile 206 Pulse XV power source, providing MIG/MAG, Pulse and Dual Pulse MIG, TIG Lift and MMA welding capabilities in a single compact machine for versatile professional applications.
