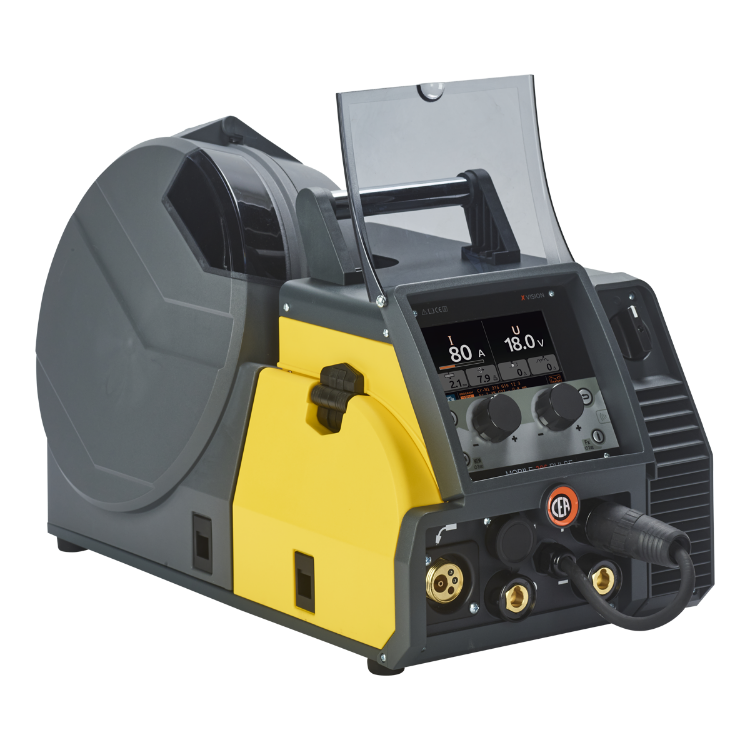

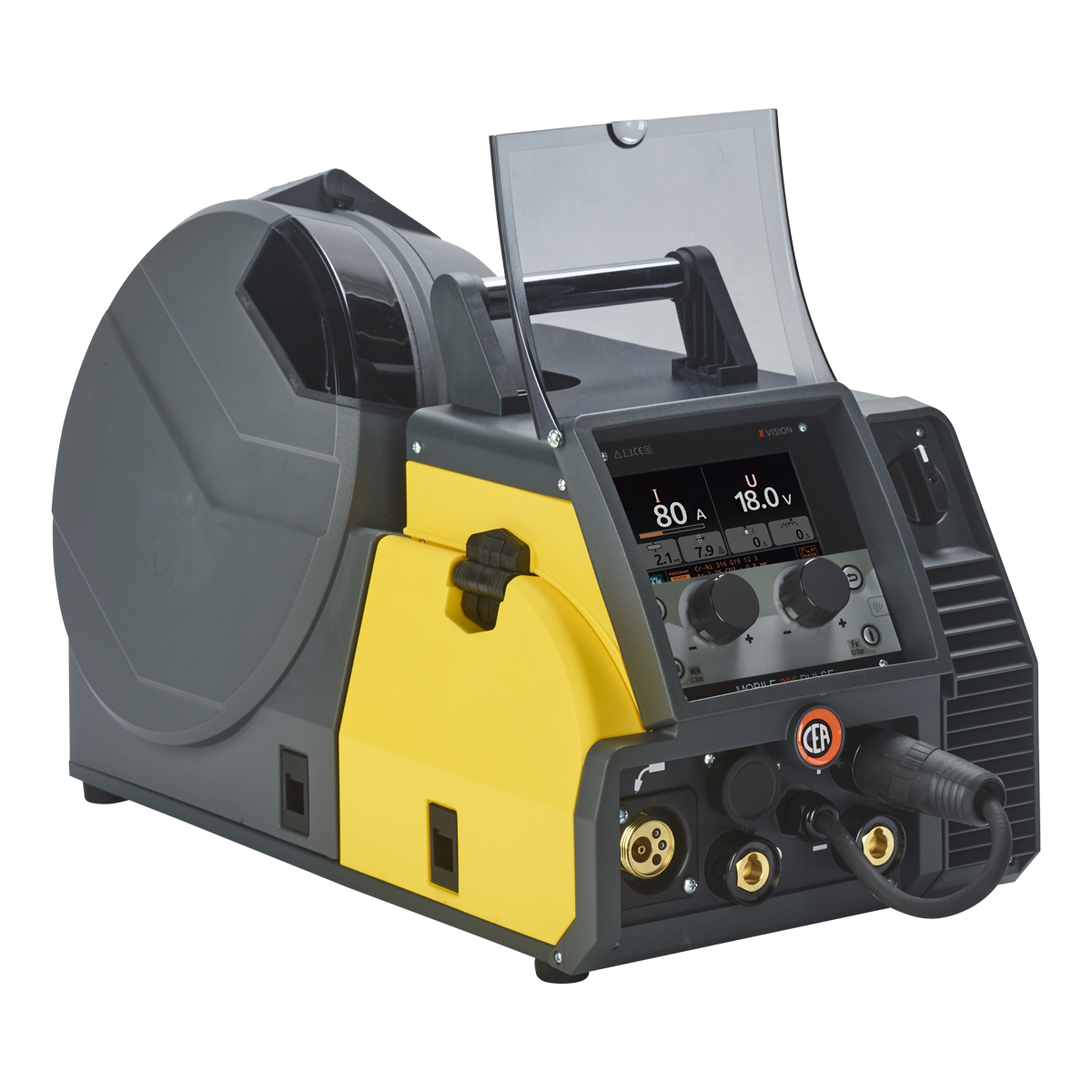

CEA Mobile 206 Pulse 200A Single Phase Pulse MIG / TIG / MMA Welder

CEA Mobile 206 Pulse 200A Single Phase Pulse MIG / TIG / MMA Welder

Key Features & Benefits

230V Single-Phase Power with PFC Technology
Features Power Factor Correction (PFC) technology, allowing the welder to deliver its full 200A output from a suitable 230V 16A supply or compatible generator for flexible workshop and onsite operation.

Advanced Pulse & Dual Pulse MIG Technology
Offers Pulse and Dual Pulse MIG welding for clean, low-spatter welds on stainless steel, galvanised steel and aluminium, helping reduce post-weld grinding, material distortion and rework.

Versatile Multiprocess Welding Capabilities
Combines MIG/MAG, Pulse MIG, Dual Pulse MIG, TIG Lift and MMA welding in one machine, providing flexibility for sheet metal fabrication, automotive repairs, maintenance and onsite welding applications.

Powerful 200A Welding Performance
Delivers up to 200A welding output at a 25% duty cycle, 140A at 60% and 105A at 100% at 40°C, providing dependable performance for light fabrication, automotive repairs and general maintenance.

vision.COLD & vision.ULTRASPEED Technology
Features vision.COLD for controlled heat input when welding thin materials and vision.ULTRASPEED for faster MIG welding, helping reduce distortion and improve productivity across fabrication tasks.

Compact & Portable Italian-Made Design
Built in Italy with a compact 19.5 kg housing measuring 640 x 325 x 400 mm, providing convenient portability while accommodating a full-size 300 mm wire spool for workshop and onsite applications.

Reliable 4-Roll Wire Feeding System
Equipped with a 4-roll wire drive using 37 mm diameter rolls, supporting 0.6–1.2 mm welding wire and internal 300 mm spools for consistent wire feeding and reliable performance across different applications.

Complete Multiprocess Welding Power Source
Supplied with the CEA Mobile 206 Pulse XV power source, providing MIG/MAG, Pulse and Dual Pulse MIG, TIG Lift and MMA welding capabilities in a single compact machine for versatile professional applications.
