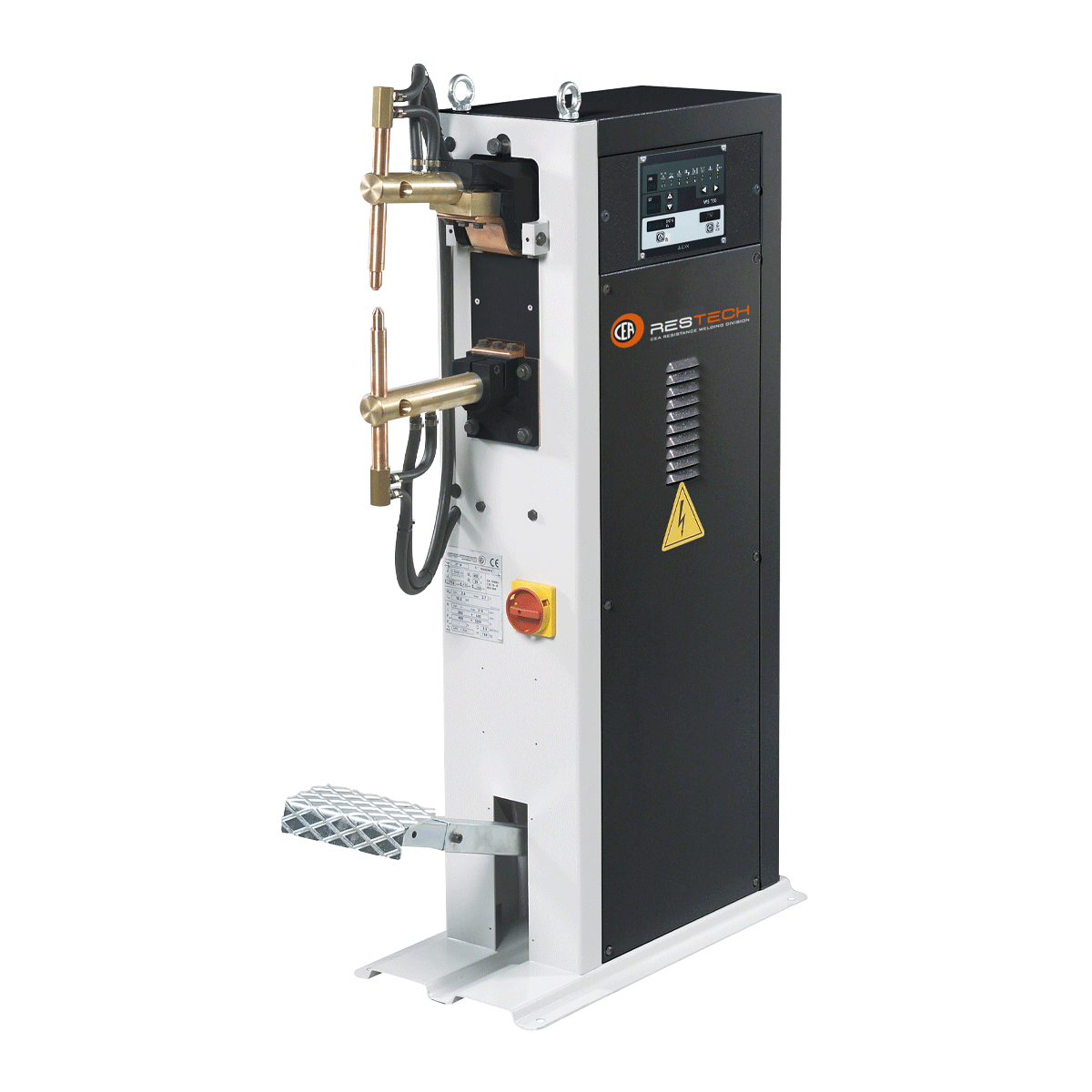

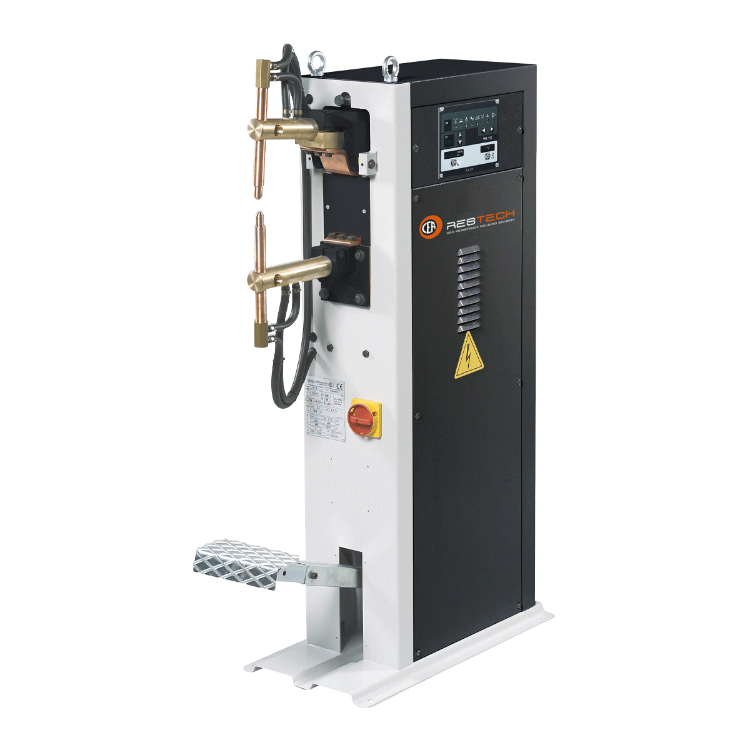

CEA Z 28 Pedal Operated Rocker Arm Spot Welder, 400V 25 kVA

CEA Z 28 Pedal Operated Rocker Arm Spot Welder, 400V 25 kVA

The CEA Z 28 25 kVA Pedal Operated Rocker Arm Spot Welder is a heavy-duty resistance spot welding machine designed for sheet metal fabrication, industrial workshops, and repetitive production applications. Operating on a 400V single-phase supply, it delivers up to 11 kA welding current for strong, consistent welds on mild steel, stainless steel, galvanised steel, and other weldable metals. Featuring mechanical foot pedal operation, programmable welding control, and adjustable water-cooled arms, the Z 28 offers precision, flexibility, and dependable performance for demanding workshop environments.

Key Features & Benefits

Mechanical Foot Pedal Operation
Provides direct control over electrode pressure through a mechanical foot pedal, allowing operators to position and clamp workpieces accurately without requiring a compressed air supply.

Powerful 25 kVA Welding Performance
Equipped with a 25 kVA transformer delivering up to 11 kA maximum welding current, providing strong, consistent resistance spot welds across various weldable sheet metals.

CEA WS 750 Microprocessor Welding Control
Features the CEA WS 750 STD microprocessor controller with 100 programmable welding JOBs and USB connectivity, allowing operators to store and recall settings for repeatable weld quality.

Adjustable 250–600 mm Rocker Arms
Features adjustable-length rocker arms ranging from 250 to 600 mm, providing flexible access to deep panels, complex sheet metal assemblies, and difficult-to-reach welding positions.

Water-Cooled Arms & Copper Electrode Holders
Water-cooled welding arms and adjustable-height copper electrode holders help manage operating temperatures, reduce electrode wear, and maintain consistent welding performance during extended production runs.

400V Single-Phase Power Supply
Designed for a 400V single-phase, 50/60 Hz electrical supply, providing reliable power for industrial spot welding applications with a specified 40A delayed fuse requirement.

Heavy-Duty Workshop Construction
Built for demanding fabrication environments, the Z 28 features 40 mm diameter welding arms, 16 mm electrodes, and a robust 118 kg construction for stable operation during repetitive welding tasks.
