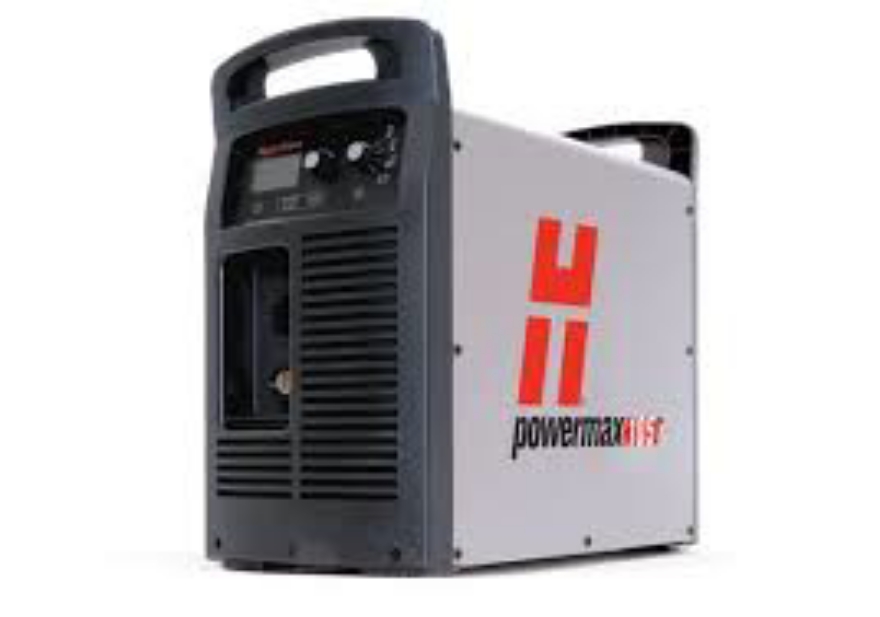

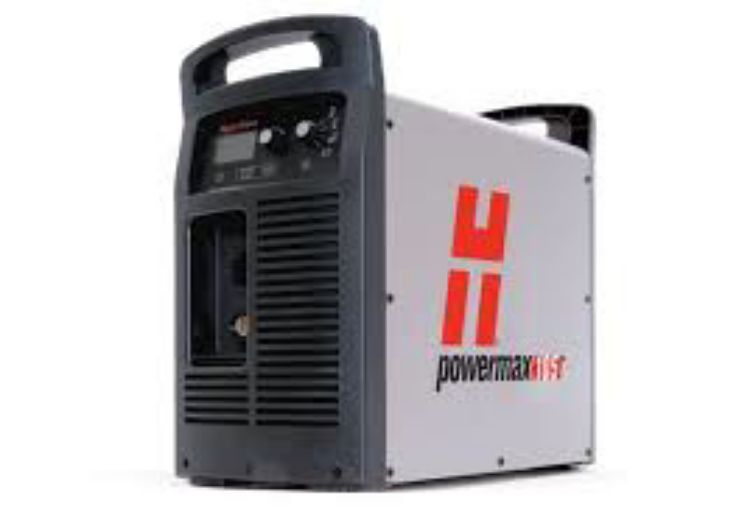

    Hypertherm Powermax 105

    PMX105 Hypertherm Powermax105 Plasma Cutter Package
    SKU: 203347
    Please give us a brief description of your intended application (we may have a better solution.)

    Hypertherm Powermax 105

    The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm (1-1/4") thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.

    Maximum productivity

    • Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm (1/2") mild steel
    • Superior cut and gouge quality let you spend less time on grinding and edge preparation
    • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

    Easy-to-use for cutting and gouging

    • No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
    • SpringStart™ technology ensures consistent starting and a more reliable torch
    • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

    Built to handle tough jobs

    • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
    • Duramax torches are designed for high-impact and heat resistance
    Products specifications
    Input voltagesCSA 200-600 V, 3-PH, 50/60 Hz CE 400 V, 3-PH, 50/60 Hz 200-400 V, 3-PH, 50/60 Hz CCC 380 V, 3-PH, 50/60 Hz
    Input current @ 16.8 kW200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A
    Output current30 - 105 A
    Rated output voltage160 VDC
    Duty cycle @ 40°C (104°F)80% @ 105 A
    Open circuit voltage (OCV)200-600 V CSA: 300 VDC 380 V CCC and 230-400 V CE: 288 VDC 400 V CE: 292 VDC
    Weight with 7.6 m (25') torch200-600 V CSA: 45 kg (100 lbs) 380 V CCC/400 V CE: 41 kg (90.4 lbs) 230-400 V CE: 45 kg (100 lbs)
    Gas SupplyClean, dry, oil-free air or nitrogen
    Recommended gas inlet flow rate / pressureCutting: 217 l/min (460 scfh) @5.9 bar (85 psi) Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)
    Input power cable length3 m (10') *
    Power supply typeInverter - IGBT
    Engine drive requirement30 kW for full 105 A output
    CertificationsCSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.
    WarrantyPower supplies have a 3-year warranty and torches a 1-year warranty.
    Dimension(L x W x H)592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Hypertherm Powermax 105

    The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm (1-1/4") thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.

    Maximum productivity

    • Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm (1/2") mild steel
    • Superior cut and gouge quality let you spend less time on grinding and edge preparation
    • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

    Easy-to-use for cutting and gouging

    • No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
    • SpringStart™ technology ensures consistent starting and a more reliable torch
    • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

    Built to handle tough jobs

    • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
    • Duramax torches are designed for high-impact and heat resistance
    Products specifications
    Input voltagesCSA 200-600 V, 3-PH, 50/60 Hz CE 400 V, 3-PH, 50/60 Hz 200-400 V, 3-PH, 50/60 Hz CCC 380 V, 3-PH, 50/60 Hz
    Input current @ 16.8 kW200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A
    Output current30 - 105 A
    Rated output voltage160 VDC
    Duty cycle @ 40°C (104°F)80% @ 105 A
    Open circuit voltage (OCV)200-600 V CSA: 300 VDC 380 V CCC and 230-400 V CE: 288 VDC 400 V CE: 292 VDC
    Weight with 7.6 m (25') torch200-600 V CSA: 45 kg (100 lbs) 380 V CCC/400 V CE: 41 kg (90.4 lbs) 230-400 V CE: 45 kg (100 lbs)
    Gas SupplyClean, dry, oil-free air or nitrogen
    Recommended gas inlet flow rate / pressureCutting: 217 l/min (460 scfh) @5.9 bar (85 psi) Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)
    Input power cable length3 m (10') *
    Power supply typeInverter - IGBT
    Engine drive requirement30 kW for full 105 A output
    CertificationsCSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.
    WarrantyPower supplies have a 3-year warranty and torches a 1-year warranty.
    Dimension(L x W x H)592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
