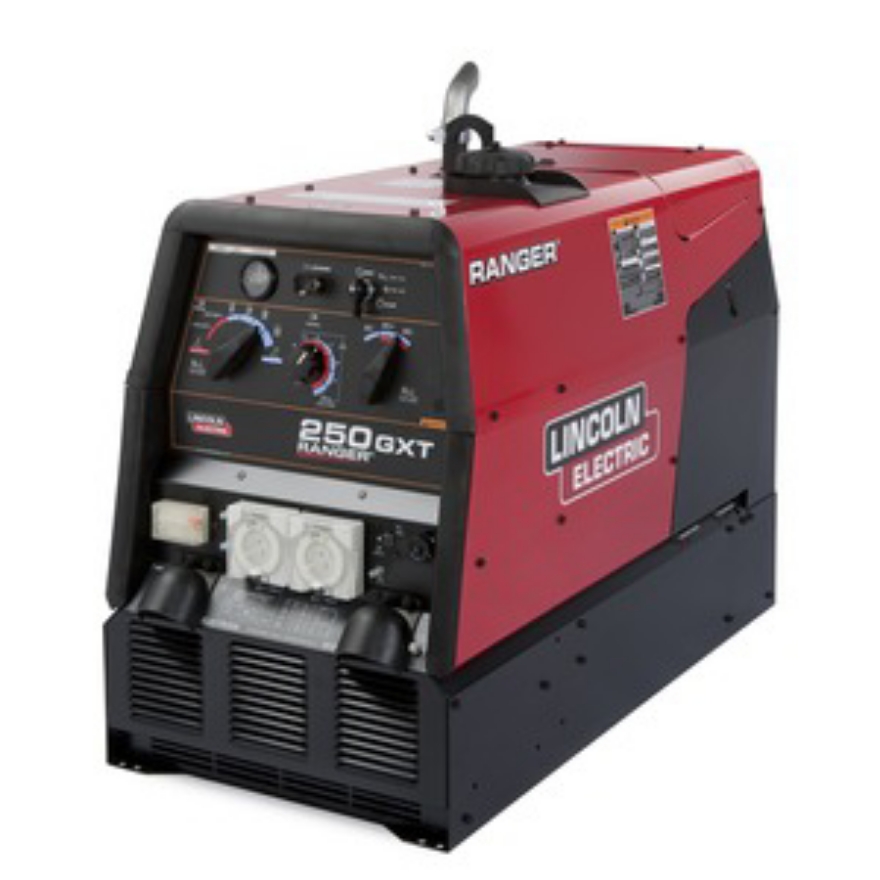

Lincoln Ranger 250GXT Engine Driven Welder

Brand: Lincoln
SKU: 202780
K2923-1 Lincoln Ranger 250 GXT
$ 9,490 .00 excl GST
$ 10,913.50 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 7,200 watts continuous for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case.

  • Totally Enclosed Case
    • Engine is fully protected.
    • 3 service access doors.
    • Low Noise – 76.4 dBA sound level at 7m 100.7 dB sound power (Lwa) at rated output.
  • Versatile AC/DC Welding
    • AC/DC welding output for a broad range of stick electrode types.
    • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding.
    • MIG and Flux-Cored capable (with optional equipment).
    • Remote ready! 6-pin connector and local/remote switch for remote control operation.
  • 7,200 watts continuous power for generator, plasma cutter or inverter welder.
  • Lights, grinder, power tools.



Specifications

Products specifications
Rated Output250A AC/25V/100% 250A DC/25V/100%
Output Range50-250A AC/DC
Generator Output7200 watts continuous
Type of engineKohler OHV Command CH730
HP and Speed23@3600 RPM
Cylinders2
Noise Level100.7 dB Sound Power (Lwa) 76.4 dBA Sound Level at 7m
Dimension(H X W X D)759 mm x 546 mm x 1073 mm
